Working with Stylesheets

This section provides instructions for performing the various tasks involving stylesheets. See also Working with Templates. This section covers the following topics:

Also, Stylus Studio provides a number of tools that help you debug stylesheets. See Chapter 6Debugging Stylesheets.

Opening Stylesheets

To open a stylesheet:

1. In the Stylus Studio tool bar, click Open . Stylus Studio displays the Open dialog box.

Alternatives: Select File > Open or press Ctrl+O.

The XSLT stylesheet is displayed in the XSLT editor.

After you open a stylesheet, you can edit it. However, to be able to apply the stylesheet to an XML document, you must create a scenario. See Applying Stylesheets.

About the XSLT Editor

The XSLT editor, which displays a stylesheet when you open it, has four tabs at the bottom.

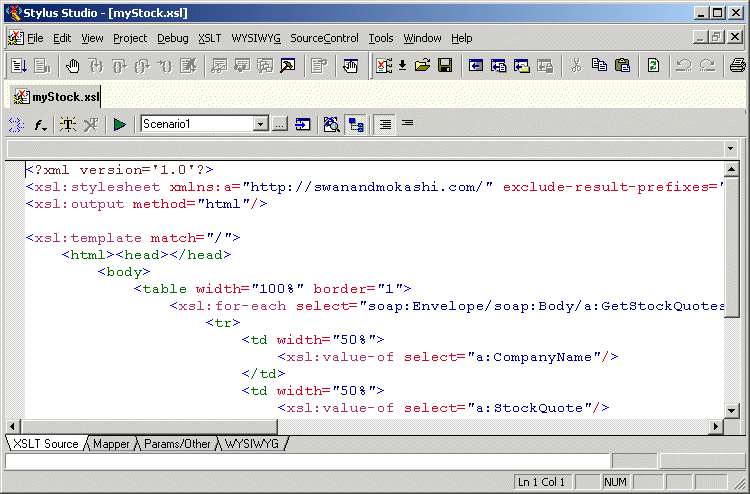

Figure 200. XSLT Editor

The XSLT Source, Mapper, and Params/Other tabs are always available. The WYSIWYG tab is available only when the stylesheet generates HTML.

The WYSIWYG tab is available only in Stylus Studio XML Professional Edition.

Editing XSLT as XML

If you want, you can edit an XSLT file as an XML file. To do this, open the stylesheet in the XML editor instead of in the XSLT editor. In the Open dialog box, click the down arrow in the Open button. Click XML Editor in the drop-down menu. A document can be open in the XML editor and in the XSLT editor at the same time.

Creating Stylesheets

To create a stylesheet:

Stylus Studio displays the Scenario Properties dialog box.

Alternative: Select File > New > XSLT: WYSIWYG. This automatically sets the output method to HTML, and displays the WYSIWYG HTML editor. See Creating Stylesheets That Generate HTML.

The WYSIWYG HTML editor is available only in Stylus Studio XML Professional Edition.

Alternative: Select File > New > XSLT: Mapper. See Chapter 5Creating XSLT Using the XSLT Mapper.

Specifying Stylesheet Parameters and Options

You can specify values for stylesheet parameters in the Parameter Values tab of the Scenario Properties dialog box.

To specify XSLT stylesheet parameters:

2. In the XSLT editor tool bar, click Browse .

Stylus Studio displays the Scenario Properties dialog box.

Stylus Studio displays a list of the parameters defined in your stylesheet, if any, with any default values.

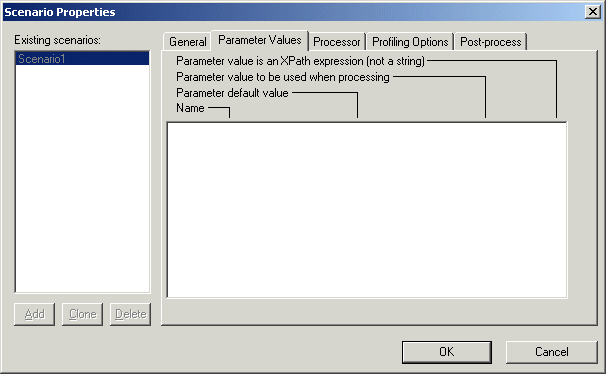

Figure 201. XSLT Scenario Parameter Values Tab

The default is that Stylus Studio passes a parameter as a string.

To view stylesheet parameters and and specify stylesheet options, click the Params/Other tab in the stylesheet window.

In the XSLT Encoding field, you can specify the encoding you want Stylus Studio to use when you save the stylesheet.

Figure 202. XSLT Parameters Tab

To display a list of the encodings supported by Stylus Studio, click the down arrow in the XSLT Encoding field.

In the Output method field, you can specify the type of data you want the stylesheet to generate. Choices include

If you do not specify an xsl:output instruction in your stylesheet, Stylus Studio uses the default output method you specify here. If you do specify an xsl:output instruction in your stylesheet, that instruction overrides the default you specify here.

When the result of applying a stylesheet is XHTML, specify xml as the Output method. Note, however, that Stylus Studio displays rendered HTML in the Preview in Browser window.

In the Params/Other tab, in the Output Encoding field, you can specify the encoding you want Stylus Studio to use in the document that is the result of applying the stylesheet. When you apply a stylesheet, Stylus Studio uses this encoding for the output document. You can change the encoding by changing the setting in the Params/Other tab or in the initial processing instruction in the stylesheet. When you change the setting in one of these places, Stylus Studio automatically changes it in the other. They are always the same. In the Output Encoding field, click the down arrow to display a list of the supported encodings.

If you want Stylus Studio to insert indents in the result document, select Indent.

Applying Stylesheets

In order to apply a stylesheet to an XML document, the stylesheet must be associated with a scenario. See

If your stylesheet is associated with a scenario, there are two ways to apply it:

The following topics provide more information about how to apply stylesheets:

About Applying Stylesheets

When you apply a stylesheet, Stylus Studio checks both the XML source document and the XSLT stylesheet for correct syntax. If it detects any errors, it displays a message that indicates what the error is. This message appears at the bottom of the XSLT editor. Stylus Studio also displays and flags the line that contains the error.

Often, a stylesheet refers to other files, such as CSS stylesheets or images. For Stylus Studio to display the complete result file in the Preview window, you must enter the path for resolving any links. Do this in the Base URL for HTML links resolution field of the Scenario Properties dialog box.

Ensure that the correct output type is set. To do this, click the Params/Other tab at the bottom of the stylesheet and check the value of the Output Method field.

Multiple scenarios

If your stylesheet is associated with more than one scenario, select the scenario you want to use and then apply the stylesheet. To do this, click the down arrow to the right of the scenario name field to display a list of scenarios. Click the scenario you want to use, and then click Preview Result . After you apply a stylesheet in a particular scenario, the Preview window displays a tab for that scenario. To reapply the stylesheet in that scenario, click Preview Result in the left tool bar.

You might want to apply the same stylesheet to two different XML documents and compare the results. To do this, create a scenario for each XML source document. Apply the stylesheet in the context of each scenario. Stylus Studio displays a tab for each scenario at the bottom of the Preview window. Click the tab to display the result document for that scenario.

Stylus Studio does not support scenarios that consecutively apply multiple stylesheets to one source document. However, you can use the StylusXslt command-line utility within a batch file perform this type of operation. See Applying a Stylesheet from the Command Line.

Results of Applying a Stylesheet

Stylus Studio applies the stylesheet to the XML source document specified in the current scenario and refreshes the Preview window with the latest result document. If the Preview window is not visible, select View > Preview from the Stylus Studio menu bar.

To toggle between viewing the text of the result and viewing what the result would look like in a browser, click Preview in Browser or Preview Text .

Backmap stack window

If you click in the result document, Stylus Studio displays the Backmap Stack window, which lists the XSLT instructions that generated the text you clicked.

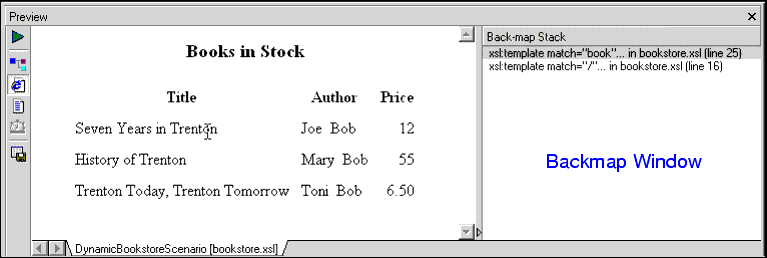

Figure 203. XSLT Backmap Window

Stylus Studio also flags the line in the stylesheet that contains the first instruction in the Backmap Stack window.

XML Tree view

If the result document is XML, in the Preview window, you can click Preview in Tree to display the result of XSLT processing as an XML tree.

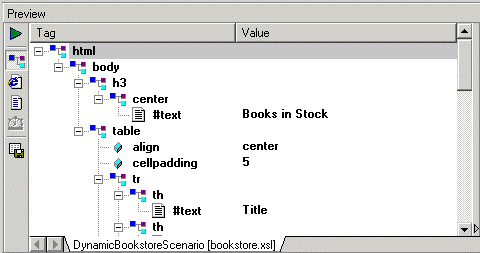

Figure 204. XML Tree View

The tree view provides

Savig results

To save the result of applying a stylesheet, click Save Preview in the Preview window. Stylus Studio displays the Save As dialog box.

The result document reflects any changes you made to either the XML source document or the XSLT stylesheet. You do not need to explicitly save either the XML or XSLT file to have changes to those documents appear in the result document. However, when you apply a stylesheet, Stylus Studio does not also save the stylesheet. To save a stylesheet, click Save .

Applying Stylesheets to Large Data Sets

When you open a stylesheet or assign a source XML document to a scenario, Stylus Studio loads the entire XML source document in memory. Stylus Studio requires the source XML document in order to display

If the source XML document is particularly large, loading it can take several minutes.

Each time you leave and return to Stylus Studio, Stylus Studio checks whether any open documents have been modified. If the documents reside on remote servers, this can take some time. If you want, you can turn off the check for modified documents.

To turn off the check for modified documents:

Stylus Studio displays the Options dialog box.

Creating a Scenario

A scenario allows you to preview the results of applying a stylesheet. Each scenario is for a particular group of settings. These settings include the name of an XML source document, the values of any parameters in the stylesheet, and the values of any encoding settings. A scenario can include any setting that you can specify when you apply the stylesheet.

A scenario can be associated with only one stylesheet and only one XML source document. However, you can associate any number of scenarios with a stylesheet, and you can associate any number of scenarios with an XML source document.

To create a scenario:

1. In the XSLT editor tool bar, click Browse .

Stylus Studio displays the Scenario Properties dialog box.

3. In the Source XML URL: field, type the name of the XML file you want to apply the stylesheet to, or click Browse to navigate to an XML file and select it.

For more information, see Scenario Properties General Tab (XSLT).

Cloning Scenarios

When you clone a scenario, Stylus Studio creates a copy of the scenario except for the scenario name. This allows you to make changes to one scenario and then run both to compare the results.

To clone a scenario:

2. In the XSLT editor tool bar, click Browse to display the Scenario Properties dialog box.

Saving Scenario Meta-Information

Stylus Studio can store scenario meta-information in two places:

When you save a stylesheet, Stylus Studio saves the scenario meta-information in the stylesheet, but not in the project. When you select File > Save All or when you save the project, Stylus Studio saves the scenario meta-information in the stylesheet and in the project. To ensure that scenario meta-information in the project and in the stylesheet is consistent

Suppose you modify a scenario and save and close the associated stylesheet. If the stylesheet belongs to the open project, when you save the project, Stylus Studio saves the closed stylesheet's scenario meta-information in the project.

Applying a Stylesheet to Multiple Documents

You can apply the same stylesheet to multiple documents

Applying the Same Stylesheet in Separate Operations

Scenarios make it easy to view results and apply the same stylesheet to multiple XML documents. A stylesheet can have any number of scenarios. Each scenario is associated with only one stylesheet. In addition to the stylesheet, a scenario is associated with a source XML file. The same XML file can be associated with any number of scenarios.

You create an initial scenario when you create a stylesheet. You can create additional scenarios at any time. See Creating a Scenario.

To view results for a particular scenario:

3. Click Preview Result , which is directly to the left of the scenario field. This applies the stylesheet to the XML document specified in the selected scenario.

Each time you generate a different scenario, Stylus Studio displays a tab at the bottom of the Preview window for that scenario. Click the tab for the scenario you want to view. This allows you to compare results.

Applying a Stylesheet to Multiple Documents in One Operation

To apply a stylesheet to multiple documents in one operation, call the document() function in the XPath expression of a template. This function allows you to access another XML document and select nodes from that document for processing as source nodes. See Accessing Other Documents During Query Execution.

For example, you can specify the following:

<xsl:apply-templates select="document('bookstore.xml')/bookstore"




This selects the bookstore root element of the bookstore.xml document.

Stylus Studio looks for the document in the directory that contains the stylesheet.

The document() function has a lot of overhead. You should call it once and assign the result to a variable with the xsl:variable instruction.

About Stylesheet Contents

Stylesheets are XML documents. They can contain XSLT instructions and non-XSLT elements and nodes. Stylus Studio automatically inserts some XSLT instructions. You can add additional XSLT instructions, HTML markup, and any other XML data you want. This section describes

Contents Provided by Stylus Studio

When Stylus Studio creates a stylesheet, it has the following contents:

<?xml version="1.0"?>

<xsl:stylesheet version='1.0" xmlns:xsl=





"http://www.w3.org/1999/XSL/Transform">

<xsl:template match="/">



</xsl:template>




</xsl:stylesheet>




The xsl:stylesheet instruction is required in every stylesheet that you use with Stylus Studio.

Stylus Studio defines one template, which matches the root node. Of course, the two built-in templates are also defined, although they are not explicitly in the stylesheet. For information about these templates, see Using Stylus Studio Default Templates.

When Stylus Studio creates a stylesheet from an HTML file, the template that matches the root node contains all HTML markup that was in the imported file.

Contents You Can Add

You can add to the stylesheet any XSLT instruction that Stylus Studio supports. See XSLT Instructions Quick Reference. You can also add HTML markup and any other XML-formatted data you require.

To obtain the XPath expression that retrieves a particular node in the source document you want to apply the stylesheet to, see Obtaining the XPath for a Node.

Updating Stylesheets

You can edit a stylesheet in the XSLT Source tab in Full Source mode or Template mode. To display a particular template in either mode, click the down arrow in the upper right corner of the editing pane. This displays a drop-down list of template match patterns. Click the template you want to view.

The XSLT editor keeps track of your XSLT context. That is, it keeps track of template match patterns, and any xsl:for-each element that affects the context on which the stylesheet is working. The editor uses Stylus Studio's Sense:X technology to help you create XPath expressions whenever they are needed.

After you associate the stylesheet with a scenario, you can display the source tree for the XML source document specified in the scenario. Click Source Tree in the XSLT editor tool bar. This tree provides a description of the structure of the XML source document specified in the scenario. This tree does not include elements and attributes that are not instantiated in the particular source document. However, the tree provides a structure that you can examine to help you understand stylesheet behavior in a given scenario.

Editing tools

The following sections describe the Stylus Studio editing tools:

Dragging and Dropping from Schema Tree into XSLT Editor

From the source tree of the XSLT editor, you can drag an element or attribute into the XSLT Source pane. If you drop the node in the stylesheet so that it is in a template, Stylus Studio displays the following choices:

Click the instruction you want to create. The XSLT context into which you drop the node determines the value of the select attribute in the instruction you choose. The select attribute always selects the node you dragged into the stylesheet. If you choose node_name, Stylus Studio simply inserts the name of the element or attribute you dragged in. This is convenient for pasting long element or attribute names.

If you drop the node in the stylesheet so that it is not in a template, Stylus Studio creates a new template. In the new template, the value of the match attribute is the name of the node you dragged into the stylesheet.

Double-clicking

You can also create a new template by double-clicking a node in the source tree. The difference between double-clicking a node and dragging a node is that when you double-click a node to create a template, Stylus Studio always inserts the template at the end of the stylesheet. When you drag a node to create a template, you determine the location of the template.

Using Sense:X Automatic Tag Completion

The Stylus Studio Sense:X automatic tag completion system helps you edit XSLT, HTML, and FO (formatting objects) instructions. Stylus Studio has built-in knowledge of all XSLT, HTML, and FO tags, as well as their attributes.

As you type in the XSLT edit window, Stylus Studio prompts you with a list of tag or attribute names that match the first few letters you typed. To complete the tag name you are typing, scroll the list if necessary, and double-click the tag you want.

You can customize the Sense:X system. Edit languages.xml in the Stylus Studio bin\Plugins\Configuration Files directory to customize the tag list.

To set options that specify Sense:X behavior, see Options - Application Settings - Editor General.

Using Sense:X to Ensure Well-Formed XML

Sense:X also helps you write well-formed XML. There is an option in the Editor General page that is set by default. This is Auto-Close Open Tag When Typing '</'. This means that as soon as you type </, Stylus Studio immediately inserts the only tag that can possibly be closed at that point.

If you prefer, you can turn off this option. Then, when you start to type a closing tag, the Sense:X list displays the only valid closing tag. Double-click it to insert it.

Using Standard Editing Tools

Standard editing tools are available to you for updating stylesheets. From the Edit menu or tool bar you can cut, copy, paste, replace, undo, redo, select all, and find. The usual keyboard shortcuts work as well:

For additional shortcuts, see Keyboard Accelerators.

Saving Stylesheets

When you save a stylesheet, Stylus Studio uses the encoding that is specified in the Params/Other tab of the XSLT editor. You can change the encoding by changing the setting in the Params/Other tab or in the initial processing instruction in the stylesheet. When you change one of these, Stylus Studio automatically changes the other. They are always the same.

To save an XSLT stylesheet, do one of the following:

To save your stylesheet to another file, select File > Save As.

To save multiple files, select File > Save All. This saves all files that are open in Stylus Studio.

Using Updated Stylesheets

Within a scenario, Stylus Studio automatically uses any updated files when you apply a stylesheet. It does not matter whether you have explicitly saved a file in the scenario. If a stylesheet includes or imports other stylesheets, Stylus Studio automatically uses any updated versions of included or imported stylesheets even if you have not explicitly saved them.

However, there is one situation in which Stylus Studio does not automatically use updated stylesheets. Suppose that multiple stylesheets are open in Stylus Studio. Each stylesheet generates a Web page, and the Web pages have links to each other. The stylesheets do not include or import each other. You make changes in more than one of these stylesheets and you do not explicitly save any changes. You apply one of the stylesheets, and in the Preview window you click a link to another Web page generated by one of the other stylesheets you updated. In this situation, Stylus Studio does not apply the updated stylesheet. You must explicitly save the stylesheet to be able to use the updated version.
