The Extensible Stylesheet Language (XSL) is the World Wide Web Consortium's (W3C) language for manipulating XML data. XSLT is the component of XSL that allows you to write a stylesheet that you can apply to XML documents. The result of applying a stylesheet is that the XSLT processor creates a new XML, HTML, or text document based on the source document. The XSLT processor follows the instructions in the stylesheet. The instructions can copy, omit, and reorganize data in the source document, as well as add new data.

XSL is an XML-based language. It was developed by the W3C XSL working group within the W3C Stylesheets Activity. The W3C activity group has organized its specification of XSL into three parts:

XPath specifies the syntax for patterns and expressions used in stylesheets. The XSLT processor uses an XPath expression to execute a query on the source document to determine which nodes to operate on. See Chapter 9Writing XPath Expressions.

XSLT specifies the syntax for a stylesheet that you apply to one XML document to create a new XML, HTML, or text document.

XSL formatting object language is an XML vocabulary for specifying formatting instructions.

What Is a Stylesheet?

A stylesheet is an XML document that contains instructions for generating a new document based on information in the source document. This can involve adding, removing, or rearranging nodes, as well as presenting the nodes in a new way.

This following topics provide more information:

Example of a Stylesheet

About Stylesheet Contents

Example of a Stylesheet

When you work with a stylesheet, three documents are involved:

XML source document

Result document, which can be HTML, XML, or text

XSL stylesheet, which is also an XML document

Source XML document

For example, suppose you have the following XML document:

<?xml version="1.0"?>

<bookstore>



                <book>

<author>W. Shakespeare</author>

<title>Hamlet</title>

<published>1997</published>

<price>2.95</price>

</book>

<book>

<author>W. Shakespeare</author>

<title>Macbeth</title>

<published>1989</published>

<price>9.95</price>

</book>

<book>

<author>D. Alighieri</author>

<title>The Divine Comedy</title>

<published>1321</published>

<price>5.95</price>

</book>




</bookstore>

Resulting HTML file

You can use a stylesheet to transform this XML document into an HTML document that appears as follows in a Web browser:

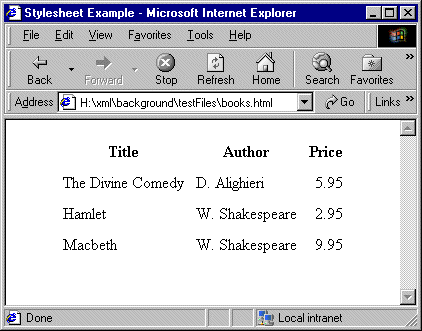

Figure 189. Example of Transformed XML

The Web page in Figure 189 is defined by the following HTML document:

<html> <head> <title>Stylesheet Example</title> </head>

<body> <table align="center" cellpadding="5">

<tr><th>Title</th><th>Author</th><th>Price</th></tr>

<tr><td>The Divine Comedy</td><td>D. Alighieri</td>



                <td align="right">5.95</td></tr>




<tr><td>Hamlet</td><td>W. Shakespeare</td>



                <td align="right">2.95</td></tr>




<tr><td>Macbeth</td><td>W. Shakespeare</td>



                <td align="right">9.95</td></tr>




</table> </body> </html>

The HTML document contains HTML markup that is not in the source document. In the HTML document, the data from the source document is not in the same order as it is in the XML source document. Also, this HTML document does not include some data that is in the XML source document. Specifically, the HTML document does not include information about the date of publication (the published elements).

Stylesheet used

To create this HTML file, the stylesheet contains two templates that provide instructions for

Adding a table with a heading row

Wrapping the contents of the title, author, and price elements in table cells

Following is a stylesheet that does this.

<?xml version = "1.0">

<xsl:stylesheet xmlns:xsl=

	"
              http://www.w3.org/1999/XSL/Transform"


              	version="1.0">

<xsl:output method="html"/>

<xsl:template match="/">

	<html> <head>

	<title>Stylesheet Example</title></head>

	<body>

	<table align="center" cellpadding="5">

	<tr>

	<th>Title</th>

	<th>Author</th>

	<th>Price</th></tr>

	<xsl:apply-templates

		select="/bookstore/book">

		<xsl:sort select="author"/>

	</xsl:apply-templates>

	</table>

	</body>

	</html>

</xsl:template>

<xsl:template match="book">

	<tr>

	<td><xsl:value-of select="title"/></td>

	<td><xsl:value-of select="author"/></td>

	<td align="right">

		<xsl:value-of select="price"/>

	</td>

	</tr>

</xsl:template>

</xsl:stylesheet>

About Stylesheet Contents

Stylesheets are XML documents. They contain a combination of

XSLT elements and attributes. In the previous stylesheet, the XSLT elements are

xsl:stylesheet

xsl:output

xsl:template

xsl:apply-templates

xsl:sort

xsl:value-of

Each XSLT element is an instruction to the XSLT processor. For information about all XSLT instructions, see XSLT Instructions Quick Reference.

Non-XSLT elements and attributes. In the previous stylesheet, these include the HTML elements that create the table.

The Root element

The root element of a stylesheet must declare a namespace that associates a prefix with the URI for an XSLT processor. The URI in the namespace declaration in the previous example identifies the W3C standard XSLT processor. This declaration, shown again below, instructs the XSLT processor to recognize the XSLT elements and attributes by their xsl prefix:


xmlns:xsl=" `http://www.w3.org/1999/XSL/Transform"`

In this stylesheet, you must use the xsl prefix for all XSLT instructions.


Note		The Stylus Studio XSLT processor requires the namespace URI to be `http://www.w3.org/1999/XSL/Transform`. The prefix can be anything you want. Typically, it is `xsl`.

When you write a stylesheet, you specify the actions you want the XSLT processor to perform when it processes a particular source node. To do this, you define XSLT templates, which are described in the next section.

What Is a Template?

A template defines what the XSLT processor should do when it processes a particular node in the XML source document. The XSLT processor populates the result document by instantiating a sequence of templates. Instantiation of a template means that the XSLT processor

Copies any literal data from the template to the result document

Executes the XSLT instructions in the template

The following topics further describe what a template is:

Contents of a Template

Determining Which Template to Instantiate

How the select and match Attributes Are Different

Contents of a Template

The stylesheet example in Stylesheet used defines the following templates using the xsl:template instruction:

<xsl:template match="/">



                <html><head><title>Stylesheet Example</title></head>

<body>

<table align="center" cellpadding="5">

<tr><th>Title</th><th>Author</th><th>Price</th></tr>

<xsl:apply-templates select="/bookstore/book">

<xsl:sort select="author">

</xsl:apply-templates>

</table></body></html>




</xsl:template>

<xsl:template match="book">



                <tr><td><xsl:value-of select="title"/></td>

<td><xsl:value-of select="author"/></td>

<td align="right"><xsl:value-of select="price"/></td></tr>




</xsl:template>

In the xsl:template tag, the value of the match attribute is an XPath pattern. This pattern matches (identifies) a node or a set of nodes in the source XML document. The value of the match attribute is the template rule.

The template body defines actions you want the XSLT processor to perform each time it instantiates this template. It contains

XSLT instructions you want the XSLT processor to follow; for example, xsl:apply-templates in the first template, and xsl:value-of in the second template.

Elements that specify literal output you want the XSLT processor to insert in the result document. For example:


<table align="center" cellpadding="5">

Determining Which Template to Instantiate

When the XSLT processor applies a stylesheet to an XML document, it begins processing with the root node of the XML source document. To process the root node, the XSLT processor searches the stylesheet for a template rule that matches the root node. A template rule matches the root node when the value of the template's match attribute is "/".

If you explicitly defined a template rule that matches the root node, the XSLT processor finds it and instantiates its template. If the XSLT processor does not find an explicitly defined template rule that matches the root node, the processor instantiates the default template that matches the root node. Every stylesheet includes this default template.


Note		Whether or not you explicitly define a template rule that matches the root node, the XSLT processor always instantiates a template that matches the root node.

In the sample stylesheet, the template rule in the first template matches the root node:


<xsl:template match="/">

The XSLT processor instantiates this template to start generating the result document. It copies the first few lines from the template to the result document. Then the XSLT processor reaches the following XSLT instruction:


<xsl:apply-templates select="/bookstore/book"/>

When the XSLT processor reaches the select attribute, it creates a list of all source nodes that match the specified pattern. In this example, the list contains book elements. The processor then processes each node in the list in turn by instantiating its matching template. First, the XSLT processor searches for a template that matches the first book element. The template rule in the second template matches the book element:


<xsl:template match="book">

After instantiating this template for the first book element, the XSLT processor searches for a template that matches the second book element. The XSLT processor instantiates the book template again, and then repeats the process for the third book element. That is, the XSLT processor searches for a matching template, and instantiates that template when it is found.

After three instantiations of the book template, the XSLT processor returns to the first template (the template that matches the root node) and continues with the line after the xsl:apply-templates instruction.

How the select and match Attributes Are Different

Consider the following instructions:


<xsl:apply-templates select=expression/> <xsl:template match=pattern/>

The xsl:apply-templates instruction uses the select attribute to specify an XPath expression. The xsl:template instruction uses the match attribute to specify an XPath pattern.

When the XSLT processor reaches an expression that is the value of a select attribute, it evaluates the expression relative to the current node. The result of the evaluation is that the XSLT processor selects a set of nodes to be processed.

When the XSLT processor reaches a pattern that is the value of a match attribute, it evaluates the pattern alone. The result of the evaluation is that the XSLT processor determines whether or not the pattern matches the node already selected for processing.

For example, suppose you have the following instruction:


<xsl:apply-templates select="/bookstore/book"/>

This instruction selects the book elements for processing. For each book element, the XSLT processor searches for a template that matches the book element. The following template matches the book element because the pattern identifies all elements that contain author elements. Because book elements contain author elements, this template is a match:


<xsl:template match="*[author]"> <td><xsl:value-of select="author"/></td> </xsl:template>

This example shows that the expression that the XSLT processor uses to select nodes and the pattern it uses to match nodes are independent of each other.

How the XSLT Processor Applies a Stylesheet

When the XSLT processor applies a stylesheet, it starts by automatically selecting the root node for processing and then searching for a template that matches the root node. The XSLT processor then iterates through the process of instantiating templates, selecting nodes in the source document for processing, and matching patterns, until no more templates need to be instantiated.

This section uses the sample stylesheet on Stylesheet used to present this process in more detail in the following topics:

Instantiating the First Template

Selecting Source Nodes to Operate On

Controlling the Order of Operation

Omitting Source Data from the Result Document

When More Than One Template Is a Match

When No Templates Match

Instantiating the First Template

To apply a stylesheet, the XSLT processor searches for a template that matches the source document root. The XSLT processor then instantiates the matching template and begins to process it line by line.

The specific processing depends on the contents of the template that matches the root node. The parts of the template include

XSLT instructions

Literal result elements

Literal result text

It is important to understand that the contents of the XML source document do not dictate the order of XSLT processing. The XSLT processor performs only those actions that you specify, and operates on only the source nodes that you select. For example:

<xsl:template match="/">



                <html><head><title>Stylesheet Example</title></head>

<body>

<table align="center" cellpadding="5">

<tr><th>Title</th><th>Author</th><th>Price</th></tr>

<xsl:apply-templates select="/bookstore/book"/>

</table></body></html>




</xsl:template>

This template matches the root node. Consequently, the XSLT processor begins processing by instantiating this template. This means it processes each part of the template in the order in which it appears.

In the preceding example, the XSLT processor first copies the first four lines in the template body directly into the result document. Then it executes the xsl:apply-templates instruction. When execution of that instruction is complete, the XSLT processor continues processing this template with the last line in the template body. After that, processing of this template is complete, and processing of the stylesheet is also complete.

Selecting Source Nodes to Operate On

Aside from the root node, the XSLT processor operates on only those nodes in the source document that are selected as the result of executing an XSLT instruction. In a stylesheet, there are two XSLT instructions that select nodes in the source document for processing:


<xsl:apply-templates select = "expression"/> <xsl:for-each select ="expression"> template_body </xsl:for-each>

The value of the select attribute is an XPath expression. To evaluate this expression, the XSLT processor uses the current source node as the initial context node. This is the node for which the instruction that contains the select attribute is being executed. For example, if this instruction is in the template that matches the root node, the root node is the current source node.

In an xsl:apply-templates or xsl:for-each instruction, the XSLT processor uses the select expression you specify plus the current source node to select a set of nodes. By default, the new list of source nodes is processed in document order. However, you can use the xsl:sort instruction to specify that the selected nodes are to be processed in a different order. See xsl:sort.

When the XSLT processor reaches an xsl:apply-templates instruction, the XSLT processor processes each node in the list of selected nodes by searching for its matching template and, if a matching template is found, instantiating it. In other words, the XSLT processor instantiates a template for each node if a matching template is found. The matching template might not be the same template for all selected nodes. If the XSLT processor does not find a matching template, it continues to the next selected node.

In an xsl:for-each instruction, the XSLT processor instantiates the embedded template body once for each node in the list of selected nodes.

Controlling the Order of Operation

Typically, the template that matches the root node includes an xsl:apply-templates instruction. When the XSLT processor executes the xsl:apply-templates instruction, it performs the following steps:

1. The processor evaluates the expression specified for the xsl:apply-templates select attribute to create a list of the source nodes identified by the expression.

2. For each node in the list, the XSLT processor instantiates the best matching template. (Template properties such as priority and mode allow multiple templates to match the same node.)

3. The processor returns to the template that contains the xsl:apply-templates instruction and continues processing that template at the next line.

It is important to note that in step 2, the matching template might itself contain one or more xsl:apply-templates instructions. As part of the instantiation of the matching template, the XSLT processor searches for a template that matches the nodes identified by the new xsl:apply-templates instruction. In this way, the XSLT processor can descend many levels to complete processing of the first selected node in the initial xsl:apply-templates instruction. The xsl:apply-templates instruction allows you to access any elements in the source document in any order.

Example

The sample template on Instantiating the First Template contains the following xsl:apply-templates instruction:


<xsl:apply-templates select="/bookstore/book"/>

The select attribute specifies "/bookstore/book" as the expression. This selects the set of book elements in the source document as the nodes you want to process. For each selected node, the XSLT processor performs the following steps:

1. The XSLT processor searches the stylesheet for a template that matches "book".

2. When the XSLT processor finds the template that matches the book element, it instantiates it. The following template matches the book elements selected by the xsl:apply-templates instruction:


<xsl:template match="book"> <tr><td><xsl:value-of select="title"/></td> <td><xsl:value-of select="author"/></td> <td align="right"><xsl:value-of select="price"/></td></tr> </xsl:template>

3. The XSLT processor creates an HTML table row and executes the xsl:value-of instructions. These instructions insert the values for the matching book's title, author, and price elements into the table.

The XSLT processor repeats this process for each book node. In other words, it instantiates this template three times, once for each book element in the source document.

It is important to note that the XSLT processor does not search for a matching template once and then instantiate that matching template for each selected element. Rather, the XSLT processor performs the search for a matching template for each node selected for processing. For each node selected for processing, the XSLT processor

Searches for and chooses the best matching template

Instantiates the chosen template

Another way to control the order of operation is to specify the xsl:if, xsl:choose, and xsl:when instructions. See XSLT Instructions Quick Reference.

Omitting Source Data from the Result Document

The XSLT processor operates on only those nodes that you specify. If a node in your XML source document is never referenced in a stylesheet, the XSLT processor never does anything with it.

For example, the sample source XML document on Source XML document includes more than the title, author, and price for each book. It also includes the year of publication:

<book>



                <author>W. Shakespeare</author>

<title>Hamlet</title>

<published>1997</published>

<price>2.95</price>




</book>

However, the template that matches the book element does not specify any processing for the published element. Consequently, the published elements do not appear in the result document.

When More Than One Template Is a Match

Sometimes, more than one template matches the node selected by an xsl:apply-templates instruction. In this situation, the XSLT processor chooses the best match. Which match is the best match depends on the template's priority, mode, and order in the stylesheet. Priority, mode, and order are template properties that you can set.

Priority - Priority is a numeric value, such as 1, 10, or 99. The higher the numeric value, the higher the template's priority. Priority is a useful way to distinguish the relative importance of two templates.

Mode - A template's mode allows you to define the context in which a given template should be performed. To use the mode attribute, you specify it ( mode="xyz ", for example) in both the xsl:template and xsl:apply-template instructions. Once you have specified a mode, the processor applies a template only if the modes match.

Order - If the XSLT processor cannot distinguish the best match among two or more templates, it uses the last matching template that appears in the stylesheet. Thus, you can enforce priority indirectly by the order in which you define the templates within a stylesheet.

For information on specifying these attributes, see xsl:template and xsl:apply-templates.

When No Templates Match

When the XSLT processor cannot find a template that matches a selected node, it uses built-in templates. Every stylesheet includes built-in templates whether or not you explicitly define them.

The XSLT processor supports these built-in templates:

The following template matches the root node and element nodes and selects all attributes and child nodes for further processing:


<xsl:template match="*\|/"> <xsl:apply-templates /> </xsl:template>

The following template matches text and attribute nodes. This template copies the value of the text or attribute node to the result document:


<xsl:template match="@*\|text()"> <xsl:value-of select="." /> </xsl:template>

Although Stylus Studio does not explicitly insert these templates in stylesheets you create with Stylus Studio, they are always present. That is, as specified by the W3C XSLT Recommendation, these templates are always defined, whether or not they are explicitly defined. See Using Stylus Studio Default Templates.

Controlling the Contents of the Result Document

This section highlights some of the XSLT instructions you can specify in a stylesheet to control the contents of the result document. This section discusses the following topics:

Specifying Result Formatting

Creating New Nodes in the Result Document

Controlling White Space in the Result

Specifying Result Formatting

In a stylesheet, you can specify that the XSLT processor should format the result as XML, HTML, or text. Table 29 describes the XSLT processor output for each alternative:

Table 29. Output Based on Result Format
Result Format	XSLT Processor Output
XML	Well-formed XML.
HTML	Recognized HTML tags and attributes that are formatted according to the HTML 4.0 specification. Most browsers should be able to correctly interpret the result. It is your responsibility to ensure that the result is well-formed HTML. For example, `<BR>` elements should not have child nodes.
Text	All text nodes in the result in document order.

See xsl:output for information about specifying formatting in a stylesheet.

Creating New Nodes in the Result Document

The simplest way to create new nodes in a result document is to specify them as literal result elements or literal result text in a stylesheet template. For example:

<xsl:template match="/">



                <html><head></head><body><table>

<tr><th>Title</th><th>Author</th><th>Price</th></tr>

...

</table></body></html>




</xsl-template>

This template creates many nodes in the result document that were not in the source document.

You can also use XSLT instructions to create new nodes. Typically, you use XSLT instructions when you need to compute the name or value of the node. You can find information about using the following instructions in the XSLT Instructions Quick Reference:

xsl:element

xsl:attribute

xsl:comment

xsl:processing-instruction

xsl:text

You can use the xsl:value-of instruction to provide the contents for a new node. You can also create a new node by copying the current node from the source document to the result document. The current node is the node for which the XSLT processor instantiates a template. See xsl:copy.

Controlling White Space in the Result

For readability, XML documents (both source documents and stylesheets) often include extra white space. White space in XML documents includes spaces, tabs, and new-line characters. Because this white space is for readability, it receives special treatment.

Text nodes that contain only white space are

Preserved as normal text nodes in a source document

Ignored in a stylesheet, unless the parent node is xsl:text

Significant white space

Stylus Studio recommends that you specify xsl:text in a stylesheet whenever you want to create significant white space in the result. Significant white space is white space that you want to appear in the result in exactly the way that you specify.

To obtain white space for readability during output formatting, specify the xsl:output instruction with the indent attribute. Default values are yes for HTML, and no for XML. With Stylus Studio, you can select the Indent check box on the Params/Other tab to display indented output instead of one long string. Note that the value of the indent attribute, if specified in the stylesheet, has precedence over the Indent option.

Specifying XSLT Patterns and Expressions

In a stylesheet's xsl:template, xsl:apply-templates, xsl:for-each, and xsl:value-of instructions, you specify patterns or expressions as the values for the match or select attributes. These patterns are XPath expressions. You specify patterns or expressions to

Define which nodes a template rule matches.

Select lists of source nodes to process.

Extract source node contents to generate result nodes.

Depending on the context, an XSLT pattern or expression can mean one of the following:

Does this template match the current node?

Given the current node, select all matching source nodes.

Given the current node, select the first matching source node.

Given the current node, do any source nodes match?

Patterns or expressions can match or select any type of node. The XSLT processor can match a pattern to a node based on the existence of the node, the name of the node, or the value of the node. You can combine patterns and expressions with Boolean operators. For detailed information about patterns and expressions, see Chapter 9Writing XPath Expressions.

Examples of Patterns and Expressions

Following are examples of patterns and expressions you can specify in stylesheet instructions:


`xsl:template match = "book/price"`

Matches any price element that is a child of a book element.


`xsl:template match = "book//award"`

Matches any award element that is a descendant of a book element.


`xsl:template match = "book [price]"`

Matches any book element that has a child that is a price element.


`xsl:template match = "book [@price]"`

Matches any book element that has a price attribute.


`xsl:template match = "book [price=14]"`

Matches any book element that has a child that is a price element whose value is 14.


`xsl:template match = "book [@price=14]"`

Matches any book element that has a price attribute whose value is 14.


`xsl:apply-templates select = "book"`

Selects all book elements that are children of the current element.


`xsl:apply-templates select = "book/price"`

Selects all price elements that are children of book elements that are children of the current element.


`xsl:apply-templates select = "//book"`

Selects all book elements in the source document.


`xsl:apply-templates select = ".//book"`

Selects all book elements that are descendants of the current element.

Frequently Asked Questions About XSLT

How can I use quoted strings inside an attribute value?

If you need to include a quoted string inside an attribute value (in a select expression, for example), you can use the single quotation mark character (') in the value of the attribute. For example:


`select = "book[title = 'Trenton Today']"`.

How do I choose when to use xsl:for-each and when to use xsl:apply-templates?

The way xsl:for-each and xsl:apply-templates select nodes for processing is identical. The way these instructions find the templates to process the selected nodes is different.

With xsl:for-each, the template to use is fixed. It is the template that is contained in the body of the xsl:for-each element. With xsl:apply-templates, the XSLT processor finds the template to be used for each selected node by matching that node against the template rules in the stylesheet.

Finding a template by matching requires more time than using the contained template. However, matching allows for more flexibility. Also, matching lets you avoid repeating templates that might be used in more than one place in a stylesheet.

Named templates are another option for invoking a template from more than one place in a stylesheet, when you know which template you want. It is a common mistake to use (and bear the overhead of) matching when it is not needed. But it allows you to do powerful things. Matching can take into account the following:

Pattern matching on the node

Precedence of templates based on stylesheet importance

Template priority

Template ordering

Most complex document-formatting stylesheets use xsl:apply-templates extensively.


TIp		Use the XSLT Profiler to help you understand where the processor is spending most of its time. See Profiling XSLT Stylesheets.


		XSLT Profiling is available only in Stylus Studio XML Professional Edition.

How can I insert JavaScript in my result document?

If you want your result document to contain JavaScript commands, you must properly escape the JavaScript code. Use the following format in your XSLT template:


<script> <xsl:comment> <![CDATA[ <your JavaScript here> ]]> </xsl:comment> </script>

However, this method does not work when your JavaScript section contains a block of XSLT code. In this case, enclosing the JavaScript in a CDATA tag causes the XSLT processor to ignore not just the JavaScript but also the markup code within that tag.

In this situation, enclose the entity reference within an <xsl:text> tag with disable-output-escaping set to "yes". For example:


if(length <xsl:text disable-output-escaping="yes">></xsl:text> 1)

You can use this wherever an entity reference needs to be handled specifically, as opposed to being handled as part of an entire JavaScript section.

My browser does not understand the tag <br/>. How can I output just <br>?

Although your XSLT stylesheet must contain valid XML (meaning all tags must be either empty or have a closing element), you can instruct the XSLT processor to generate output compliant with HTML. See Deleting Templates.

Alternative: To ensure that your stylesheet always generates correct HTML, specify the xsl:output instruction with the method attribute set to html. See xsl:output.

Sources for Additional XSLT Information

For additional information about XSL and XSLT, visit the following Web sites:

http://www.w3.org/Style/XSL/

W3C Extensible Stylesheet Language specification

http://www.w3.org/TR/xslt

W3C XSLT Recommendation

Benefits of Using Stylus Studio

Now that you have an understanding of what a stylesheet can do, you can appreciate the benefits of using Stylus Studio to create stylesheets. Stylus Studio is the first integrated environment for creating, managing, and maintaining an XSL-enabled Web presence. By combining the tools needed to create XSLT stylesheets in a visual editing environment, Stylus Studio speeds initial development and eases maintenance. Key features of Stylus Studio include

Structural Data View

Sophisticated Editing Environment

XSLT and Java Debugging Features

Integrated XML Parser/XSLT Processor

Structural Data View

Stylus Studio graphically displays the structure, or schema, of the XML data to which you want to apply a stylesheet.

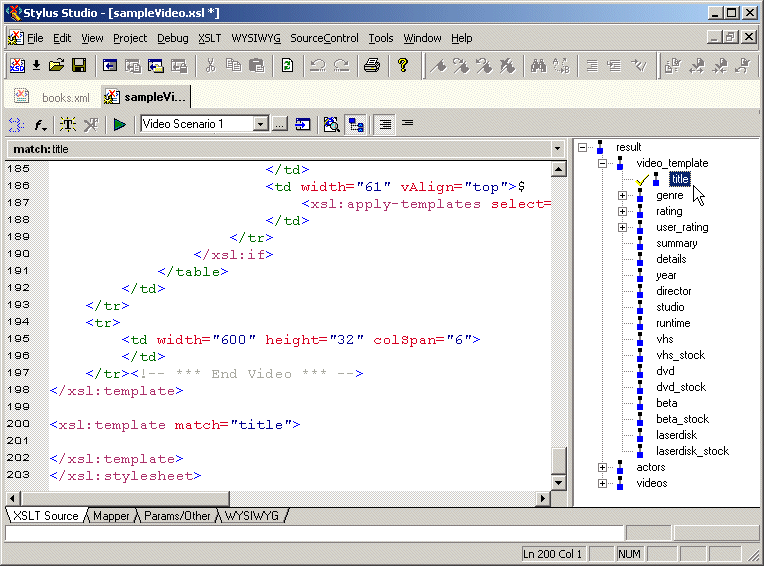

Figure 190. Tree View Lets You Easily Edit XSLT

Using this tree view, you can apply formatting to your XML - double-clicking a node in the tree automatically adds an xsl:template match= instruction for that node, for example. Similarly, when you drag a node into the XSLT source, Stylus Studio displays a pop-up menu that allows you to easily insert an XSLT instruction.

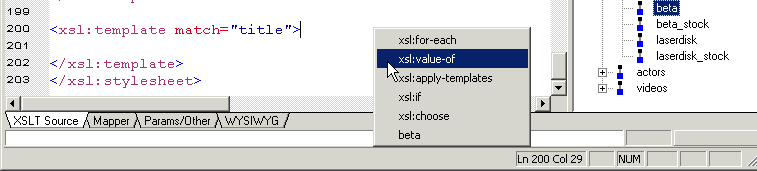

Figure 191. Stylus Studio Displays XSLT Instructions for Quick Editing

Finally, you can also use the tree to move quickly among different XSLT templates - clicking a node in the tree places the cursor at the corresponding template in the XSLT source.

Sophisticated Editing Environment

The Stylus Studio editor allows you to edit both the XML source document and the XSLT stylesheet. There is no need to memorize complicated syntax. As you type, Stylus Studio Sense:X technology automatically suggests XSLT or HTML tag and attribute names, and ensures that all XML is well formed.

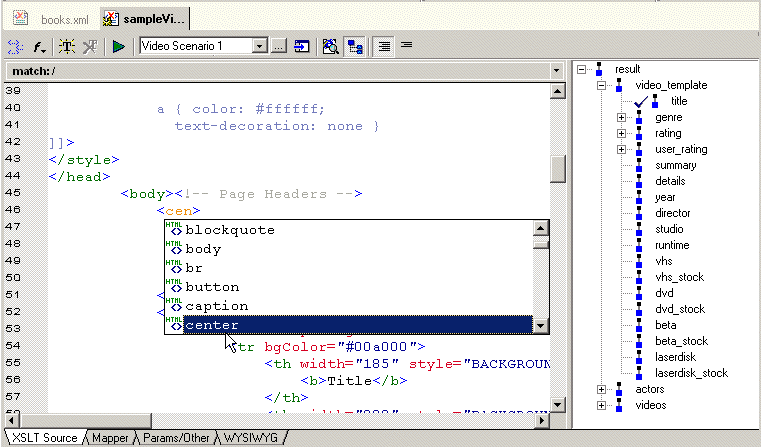

Figure 192. Sense:X Speeds Coding, Reduces Errors

Sense:X also adapts to your document by suggesting more frequently used tags first. Valid XSLT and HTML tag names are color coded to improve readability.

XSLT and Java Debugging Features

Complex stylesheets require robust debugging features. With Stylus Studio, you can do the following:

Set breakpoints in your stylesheet.

Monitor the value of XSLT variables.

Trace the sequence of XSLT instructions that created HTML output. With a click anywhere in the rendered HTML page, Stylus Studio Visual Backmapping technology displays the XSLT instructions responsible for creating that portion of HTML output.

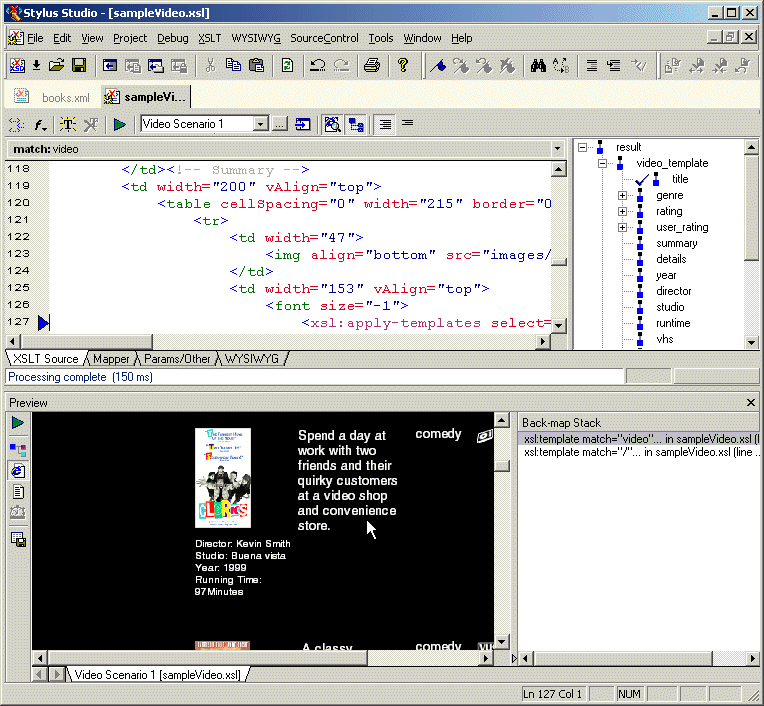

Figure 193. Click to HTML Output to Backmap to XSLT Source

Also, you can click in the stylesheet and the backmapping feature highlights the text generated by that template.

Use the XSLT Profiling report to review performance metrics to help troubleshoot and tune your XSLT stylesheets.


		XSLT Profiling is available only in Stylus Studio XML Professional Edition.

Integrated XML Parser/XSLT Processor

Stylus Studio integrates an XML parser with an XSLT processor. This allows Stylus Studio to instantly show the output of your stylesheet. Each time you apply a stylesheet to an XML document, Stylus Studio detects and flags any errors in your stylesheet or XML data.

Stylus Studio's default XSLT processor is compliant with the W3C XSLT Recommendation. You can also use the Xalan-J processor, or custom processors of your own.

< Previous | Next >
