Home > Online Product Documentation > Table of Contents > Insert and Populate a Table Insert and Populate a Table
Next, we add a table based on the
5. Expand the
videos node.
6. Drag the
video repeating element from the data sources panel and drop it on the XML Publisher canvas.
7. Select
Insert Table > Empty from the short-cut menu.

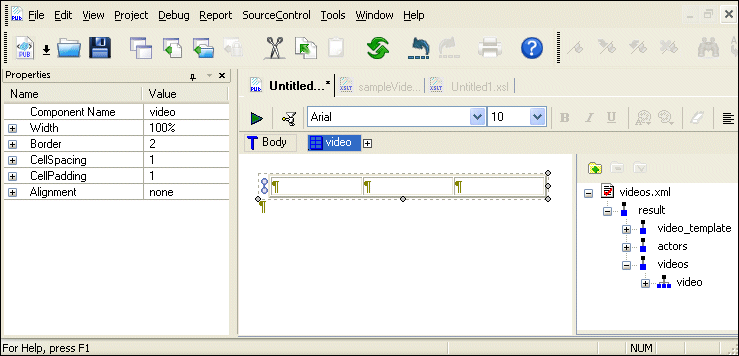

Stylus Studio creates a three-column table. At this point, the XML Publisher Editor should resemble Figure 493:
Although the table currently contains no values, if you mouse over the repeating glyph at the left of the table (
8. Right-click any cell in the table and select
Remove Column from the short-cut menu.
9. Expand the
video node in the data sources panel.
10. Drag the
title node and drop it in the first column; select
Insert Value from the short-cut menu.
A value glyph with the element name appears in the cell.
11. Repeat this step with the
rating element, dropping it in the second column.
12. Right-click the table again, and select
Add Row Before.
Stylus Studio adds a new row to the table. Note that the new row does not repeat - the repeating glyph is associated only with the second row, the row that contains the data.
13. Type
Title in the first column and
Rating in the second.
14. Click
Preview (
).
Stylus Studio creates a three-column table. At this point, your XML Publisher Editor should resemble this:
15. Click the
Hide docked window button (the small X) to close the
Preview window. This gives us more room to work, and Stylus Studio will automatically display the
Preview window the next time we preview the report.
|
) you will see that it references the
