Tree Representation of a Sample XML Document

When you query a document, it can be helpful to think of a tree representation of your data. A tree that represents the bookstore.xml document appears in Figure 287 (and is continued in Figure 288). To use Stylus Studio to view a similar tree for any XML document, open the XML document in Stylus Studio and select the Tree tab.

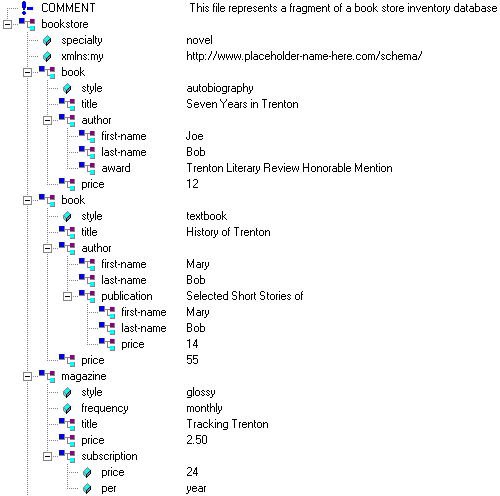

Figure 287. Tree Display of an XML Document

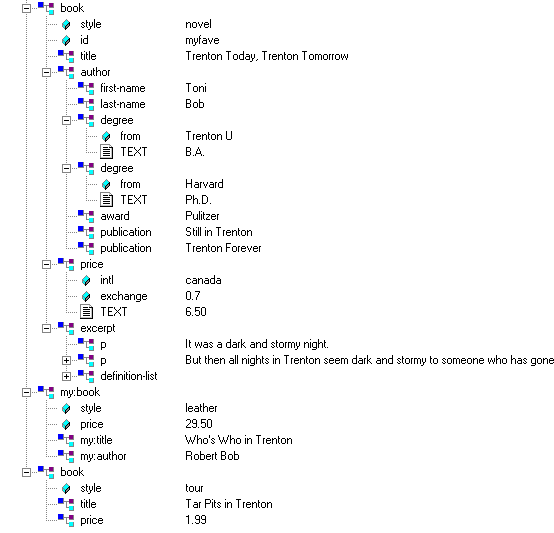

Figure 288. Tree Display of an XML Document (continued)
