Diffing Folders and XML Documents



XML differencning is available only in Stylus Studio XML Professional Edition.

During application development, it can be useful to be able to compare two or more XML documents, or to compare the contents of two folders, in order to identify the type and number of differences between them. The process of comparing one document (or folder) with another is referred to as diffing. Stylus Studio provides utilities for diffing folders and documents.

For more information

Stylus Studio provides a video demonstration of Stylus Studio's XML Diff tool. Visit our Web site to view this and other Stylus Studio video demonstrations:

http://www.StylusStudio.com/xml_videos.html

In this section

This section covers the following topics:

Overview

Stylus Studio's Diff tool lets you easily compare two or more versions of the same document in the XML Diff Viewer (as shown in Figure 130), or the contents of two folders (as shown in Figure 134).

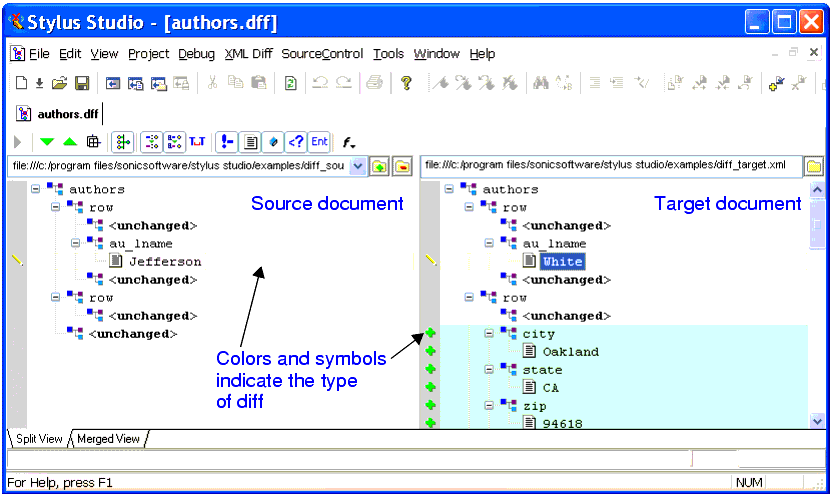

Figure 130. Example of Diffed Documents in the XML Diff Viewer

Customizable color-coding lets you quickly determine how one document differs from another - green, for example, identifies objects (such as elements and attributes) that are present in the target document, but which do not exist in the source document. When you hover the pointer over symbols displayed in the side bars of the source and target document windows, Stylus Studio displays a tool tip that indicates the specific nature of the change.

In this section

This section covers the following topics:

Sources and Targets

When you use Stylus Studio to diff documents (or folders), you select a source and a target. Stylus Studio considers the source document or folder to be the baseline, or current standard; the target document or folder is assumed to be some other version (it might be older or newer, for example) of the source. The Stylus Studio Diff tool illustrates how this other version, the target, differs from the source (or sources) you have selected.

Tip



You can open source and target documents in the XML Editor from the XML Diff Viewer - right click on the XML Diff Viewer background and select the document you want to edit from the short-cut menu of source and target documents displayed by Stylus Studio. This feature is context-sensitive - if you right-click on a node that has been removed, the target document will not be listed, for example.

The Diff Configuration File

You can save the information associated with a given XML diff session in a diff configuration file. Diff configuration files make it easy to perform a diff on the same set of XML documents over time. Examples of the information saved with the diff configuration file include the URLs of the source and target documents, and any settings made on the XML Diff menu or toolbar. Diff configuration files are created with a .dff extension.

Changes made to the source and target documents are detected by Stylus Studio the next time you open the diff configuration file, allowing you to diff the files at that time. (Whether or not the diff is run automatically when you open the diff configuration file depends on Autorun Diff settings on the Engine page of the Options dialog box. See When Does the Diff Run? for more information.)

What Diffs Are Calculated?

This section describes how Stylus Studio diffs XML documents and folders.

Documents

The Stylus Studio Diff engine compares source and target documents in their entirety. If you want, you can use the Engine page of the Options dialog box to exclude certain items from the diff calculation. These items include:

  • Comments
  • Text
  • Entities
  • Attributes
  • Processing instructions

You can also specify whether or not you want Stylus Studio to:

  • Use URIs to compare namespaces
  • Expand entity references
  • Ignore text formatting characters (new lines, carriage returns, and tabs)

See Modifying Default Diff Settingsto learn how to set these and other diff options.

Folders

Options for diffing XML documents do not affect how Stylus Studio diffs folders. When diffing folders, Stylus Studio compares one folder's contents with another. See Diffing Foldersfor more information on this topic.

Tuning the Diffing Algorithm

The purpose of any diffing tool is to identify the list of logical operations required to change the source document into the target document. Examples of logical operations include additions, revisions, and deletions. Even diffs between simple XML documents can yield a long list, sometimes with redundant operations. Ideally, the list of operations should be reduced to make it as economical as possible; that is, the list should be able to answer the question, What are the fewest number of changes required to turn the source into the target?

Calculating such a list can be time-consuming and resource intensive, and these costs might not be worth the benefits to a given user. For this reason, Stylus Studio provides settings that let you tune the diffing algorithm used by the XML Diff engine. Tuning settings are displayed in the Performance group box on the Engine page of the Options dialog box.

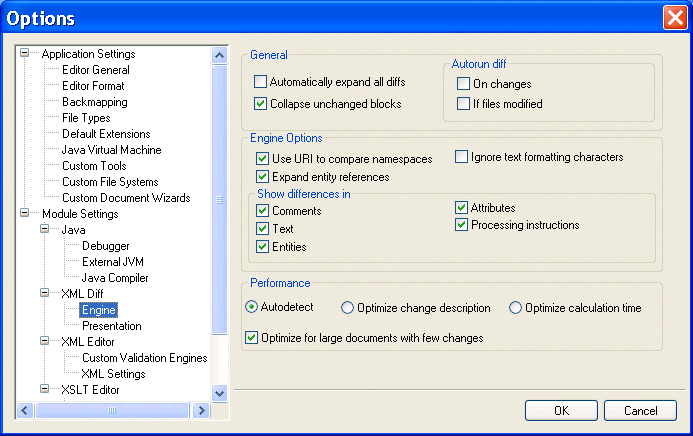

Figure 131. Performance Settings Let You Tune the Diffing Algorithm

You can

  • Select a tuning that optimizes the algorithm to provide the most economical set of changes possible ( Optimize change description). As described earlier, this calculation, though it yields the best results, can be costly in terms of time and processing resources.
  • Select a tuning that optimizes the algorithm to provide the set of changes in the shortest time possible ( Optimize calculation time).
  • Let Stylus Studio decide ( Autodetect). By default, Stylus Studio tries to provide the most economical set of changes possible, but if it determines that processing resources are limited or that the calculation will take too much time, it reverts to the algorithm tuning that is optimized for speed.
Handling Large Documents

The Optimize for large documents with few changes setting helps speed the diffing of large (greater than 1MB) documents. This setting can be used in conjunction with any of the algorithm tuning settings and is on by default.

When Does the Diff Run?

Stylus Studio runs the diff automatically, as soon as you specify the target document or folder. Whether or not subsequent changes cause Stylus Studio to automatically recalculate the diff is determined by the Autorun Diff settings on the Engine page of the Options dialog box. Changes that can make a diff recalculation necessary include adding new source and target documents, changing the underlying source and target documents themselves, or to changes to certain Engine settings.

Options That Affect When the Diff Runs

These settings, on the Engine page of the Options dialog box, determine when and whether Stylus Studio automatically recalculates the diff.

  • On changes - Certain types of changes to the diff configuration file require Stylus Studio to recalculate the diff. These changes include:
    • Adding a new source document
    • Changing the target document
    • Changing the Use URI to compare namespaces setting
    • Changing the Expand entity references setting

      • If the On changes setting is on, Stylus Studio automatically runs the diff when any of these changes occurs.

  • If files modified - If you make and save changes to a source or target document, Stylus Studio automatically runs the diff if this setting is on.

Note



These settings do not affect the diffing of folders.

See Modifying Default Diff Settingsto learn more about setting these and other Diff options.

Running the Diff Manually

You can run the diff manually by clicking the Calculate diff button ( ). Stylus Studio activates this button when it detects the need to recalculate the diff, and the On changes or If files modified settings are off. These settings, as described in When Does the Diff Run?, cause Stylus Studio to run the diff automatically.

You can also run the diff from the command line. See Running the Diff Tool from the Command Line.

Symbols and Background Colors

Stylus Studio uses symbols and background colors to alert you to differences in diffed documents and folders. The following table summarizes the symbols and default background colors, and the types of changes they represent.

Symbol
Background Color
Identifies
Light green; symbol is a green plus sign
Added items; appears in the target document and identifies an item that is present in the target but absent from the source
Light red; symbol is a red minus sign
Removed items; appears in the source document and identifies an item that is present in the source but absent from the target.
Light yellow; symbol is a yellow pencil
Changed items; can appear in both source and target documents.
Light gray; symbol is a turquoise block
Collapsed item containing changes (such as an added, changed, or removed node).
Table 13. Default Colors Used for Diffing Files and Folders

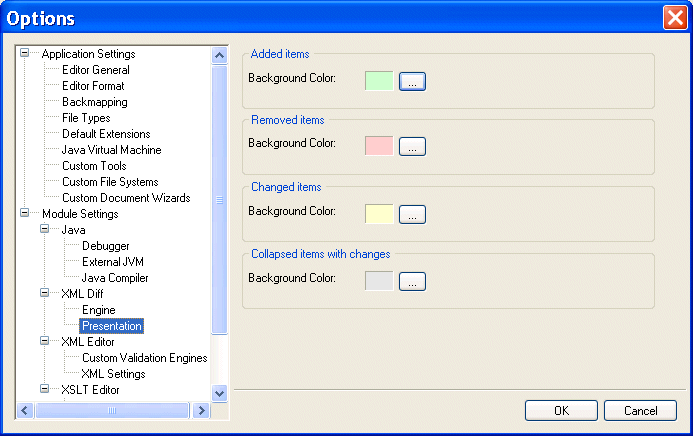

You can change the background colors on the Presentation page of the Options dialog box.

Combined Symbols

As described in Table 13, Default Colors Used for Diffing Files and Folders, Stylus Studio displays a turquoise block ( ) when a node that you have collapsed contains changes. Sometimes, the node itself has changes. In this case, Stylus Studio combines two symbols - one indicating the change of a child within the collapsed node, and one to the node itself. Consider the following illustration:

Figure 132. Sample of a Collapsed Node with Changes

Here, the city node displays a combined symbol - the turquoise box indicates that a change exists within the collapsed node; the minus sign indicates that the city node is not present in the source document. Expanding the city node makes the scope and nature of the changes explicit:

Figure 133. Expanded Node with Changes

Tip



Hover the mouse point over these symbols to display tool tips that describe the nature of the change.

Additional Symbols for Diffing Multiple Sources

Stylus Studio uses other symbols in the target document window when you diff multiple source documents. See Symbols Used in the Target Document Window.

Diffing Folders

Stylus Studio allows you to diff two folders. As shown in Figure 134, the Diff Folders dialog box displays the contents of each folder; symbols and colors, described in Symbols and Background Colors, identify the types of changes in the respective folders.

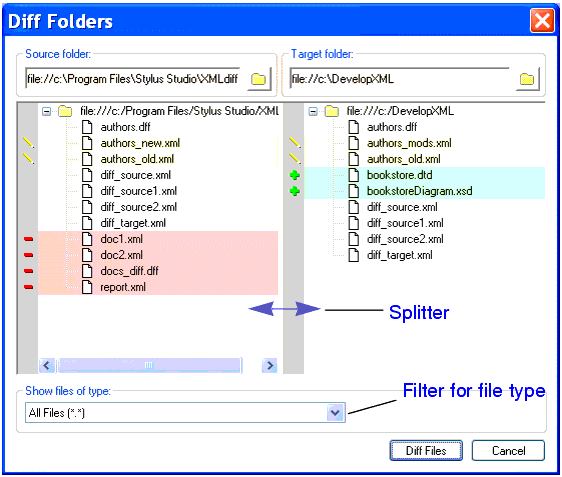

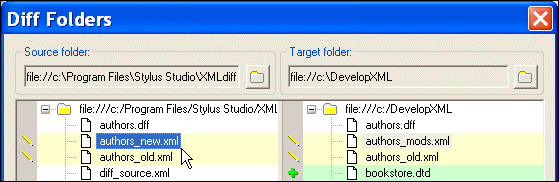

Figure 134. The Diff Folders Dialog Box After a Diff

In this section

This section covers the following topics:

Features

The Diff Folders dialog box has several features that make it easy to diff folders and the XML documents they contain:

  • A splitter lets you change the width of the source and target folder windows. This can be especially useful if you are working with a folder that has nested directories.
  • A file type filter limits the display to files with a .xml extension; if you choose, you can display (and diff) all file types, as shown in Figure 134.
  • An Abort button, shown here, appears at the bottom of the Diff Folders dialog box if the operation you are performing (loading or diffing a directory with a large number of files, for example) is taking more time than usual. Clicking the Abort button cancels the operation.

    Figure 135. Abort Button Lets You Cancel Long Load Operations

Tip



This feature is also part of the XML Diff Viewer.

How to Diff Folders

To diff folders:
1. Select Tools > Show Differences In > Folders from the Stylus Studio menu.

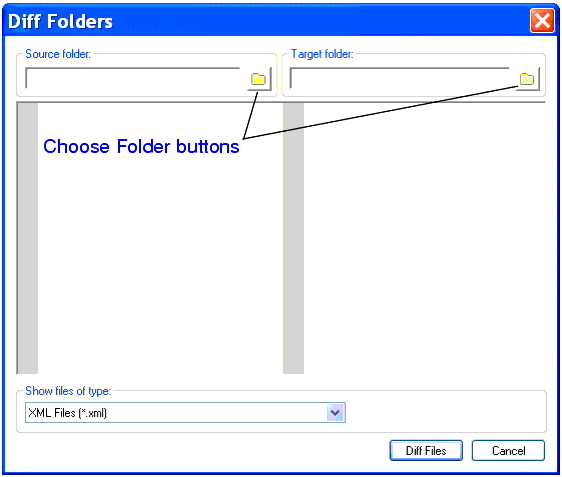

The Diff Folders dialog box appears.

2. Click the Choose Source Folder button ( ).

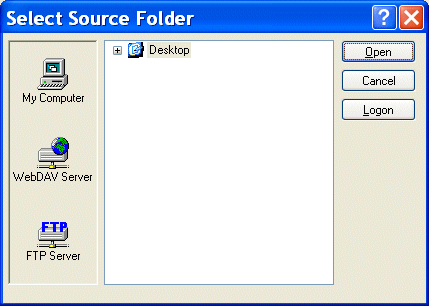

The Select Source Folder dialog box appears.

3. Expand the Desktop tree and navigate to the folder you want to use as the source folder for the diff.
4. Click Open.

The folder is displayed in the Source folder window of the Diff Folders dialog box.

5. Repeat step 2 through step 4 for the target folder.

Stylus Studio performs the diff as soon as you select the target folder for comparison.

6. Optionally, use the Show files of type drop-down list to filter the display to show only those files of the type you specify. (By default, Stylus Studio shows XML files - files with a .xml extension.)

How to Diff Documents from the Diff Folders Dialog Box

You can diff XML documents in the source and target folders directly from the Diff Folders dialog box.

To diff two files from the Diff Folders dialog box:
1. Click the file you want to diff.

The document is shown as selected in both the Source folder and Target folder windows. In this illustration, the document authors_new.xml was selected.

Tip



Notice that, even though the file names are different, Stylus Studio is able to infer that authors_new.xml and authors_mods.xml are actually the same document.

If you select a document that cannot be diffed, you will not see the selection in the opposite window.

2. Click the Diff Files button.

Stylus Studio displays the XML Diff Viewer window.

For more information

For more information on diffing documents, see Diffing a Pair of XML Documents.

The XML Diff Viewer

This section describes the XML Diff Viewer and its features, including the XML Diff Viewer toolbar and tools for loading documents.

In this section

This section covers the following topics:

Overview

Split view

You use the XML Diff Viewer to compare two or more XML documents. By default, the XML Diff Viewer displays the diffed documents on the Split View tab, which shows the documents side-by-side. The split view is shown in Figure 136.

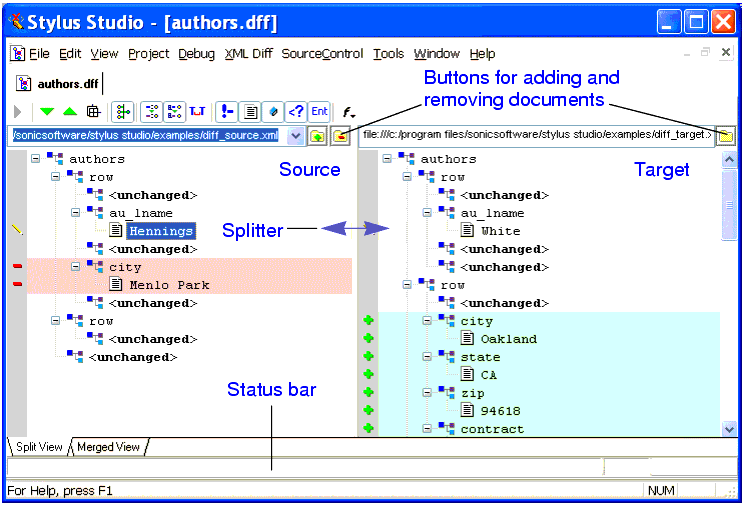

Figure 136. XML Diff Viewer - Split View

In the split view, source documents are displayed on the left, the target document on the right. A splitter allows you to change the width of the source and target document panels. You can adjust the width of the source and target document panels by dragging the bar to the left and right.

Merged view

If you prefer, you can select the Merged View tab, which folds the nodes from the source and target documents into a single window, as shown in Figure 137

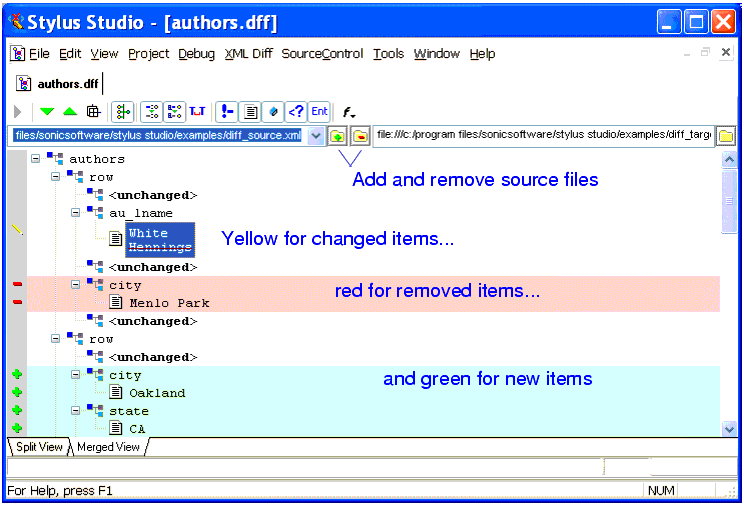

Figure 137. XML Diff Viewer - Merged View

.

Both views use the same symbols and color schemes to identify the types of changes detected by the Stylus Studio diff calculation - by default, green for added items, yellow for changed items, and red for removed items.

The merged view displays changed items in pairs - the item from the target document appears first, the item from the source document is shown second, as shown in Figure 138.

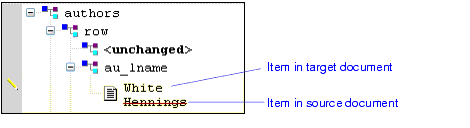

Figure 138. Close-up of Merged View

In this example, the line through the <au_lname> element in the source document, Hennings, indicates that it has changed to White in the target document.

See Symbols and Background Colors for more information on this topic, and to learn how you can assign custom colors to the results of standard differencing operations.

The XML Diff Viewer Toolbar

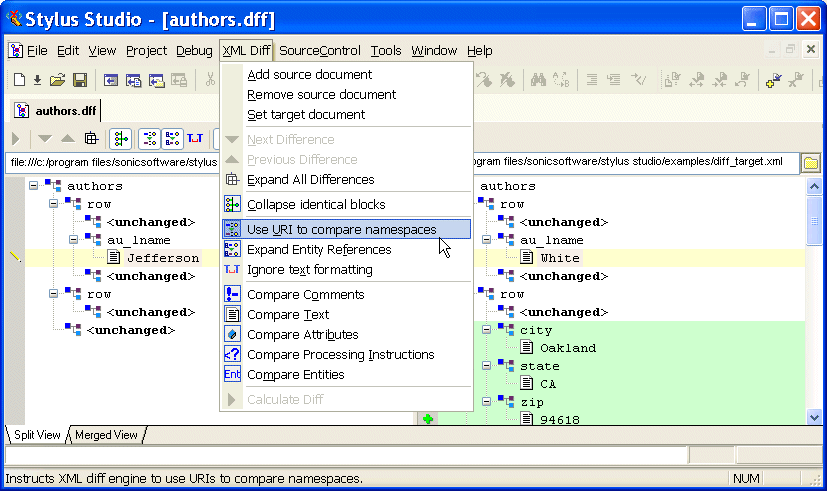

The XML Diff Viewer toolbar, shown in Figure 139, provides tools to help you

  • Manually start the diff calculation
  • Navigate source and target documents
  • Change default display and diff settings
  • Show or ignore differences in document items such as text nodes and attributes

    Figure 139. The XML Diff Toolbar

The following table identifies the individual tools and tells you where to find more information.

Tool Button
Description
Calculates the differences in the documents you have selected. This button is active only when Stylus Studio detects the need to calculate differences. This button is disabled if you have selected On changes and If files modified settings. See Engine Settings.
Skips to the next (previous) diff in the currently selected document. You must select a line in the document to enable these buttons.
By default, Stylus Studio displays collapsed documents when the diff is run. You can override this setting using the toolbar button, or you can change it permanently on the Options. page. See Engine Settings.
By default, Stylus Studio collapses any unchanged blocks to simplify the display. You can override this setting using the toolbar button, or you can change it permanently on the Options. page. See Engine Settings.
By default, Stylus Studio uses URIs to compare namespaces when diffing documents. You can override this setting using the toolbar button, or you can change it permanently on the Options. page. See Engine Settings.
Note that changing this setting requires documents to be diffed again.
By default, Stylus Studio expands entity references when diffing documents. You can override this setting using the toolbar button, or you can change it permanently on the Options. page. See Engine Settings.
Note that changing this setting requires documents to be diffed again.
By default, Stylus Studio considers text formatting characters (new lines, carriage returns, tabs) when diffing documents. You can override this setting using the toolbar button, or you can change it permanently on the Options. page. See Engine Settings.
By default Stylus Studio shows differences in comments. You can override this setting using the toolbar button, or you can change it permanently on the Options. page. See Engine Settings.
Note that this feature affects only the display, and not the calculation, of comment differences.
By default Stylus Studio shows differences in text blocks. You can override this setting using the toolbar button, or you can change it permanently on the Options. page. See Engine Settings.
Note that this feature affects only the display, and not the calculation, of text block differences.
By default Stylus Studio shows differences in attributes. You can override this setting using the toolbar button, or you can change it permanently on the Options. page. See Engine Settings.
Note that this feature affects only the display, and not the calculation, of attribute differences.
By default Stylus Studio shows differences in processing instructions. You can override this setting using the toolbar button, or you can change it permanently on the Options. page. See Engine Settings.
Note that this feature affects only the display, and not the calculation, of processing instruction differences.
By default Stylus Studio shows differences in entities. You can override this setting using the toolbar button, or you can change it permanently on the Options. page. See Engine Settings.
Note that this feature affects only the display, and not the calculation, of entity differences.
Allows you to change the font of documents displayed in the XML Diff Viewer.
Table 14. XML Diff Toolbar Buttons

Tools for Working with Documents

The XML Diff Viewer provides several tools for working with source and target documents:

  • Add/Remove document buttons

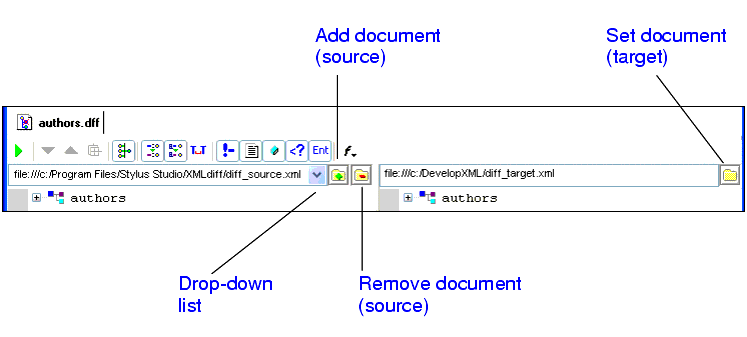

Figure 140. Buttons for Adding and Removing Documents

When you click the add or set document button, Stylus Studio displays the Open dialog box. The add button for source documents displays a green plus sign on it ( ) to alert you to the fact that you can add multiple source documents when diffing XML documents. You can specify only a single target document, however.

You use the remove button, the folder with the red minus sign on it ( ), to remove the current source document from the XML diff calculation.

Tip



If Stylus Studio determines that the load or diff operation for a given XML document will take more than a moment, it displays a message and an Abort button at the bottom of the XML Diff Viewer window. You can click the Abort button to terminate the operation at any time. The message and the button are removed from the XML Diff Viewer window once the operation is complete or cancelled.

  • Drop-down list. You use the drop-down list to change the current document in the XML Diff Viewer. When you change the current doc in a multi-document diff, the target document display - specifically, the symbols and colors used to identify documents - typically changes, as well. See Symbols Used in the Target Document Window for more information.

Removing a Target Document

You cannot remove a target document. You can specify a different target document by clicking the set target button ( ) again. This replaces the current target document with the document you select.

Diffing a Pair of XML Documents

This section describes how to use Stylus Studio to diff a pair of XML documents.

Before you begin

Before reading this section, you should read Overview, which describes basic information about the Stylus Studio Diff tool, and The XML Diff Viewer, which describes features of the XML Diff Viewer and how to use them.

How to Diff a Pair of Documents

To diff a pair of documents:
1. Select Tools > Options > Show Differences > Files from the Stylus Studio menu.

Stylus Studio displays the XML Diff Viewer.

2. In the source document window, click the add button ( ) to add the source document.

Stylus Studio displays the Open dialog box.

Tip



You can drag and drop a file into the entry field to load the document in the XML Diff Viewer.

3. Navigate to the document you want to load in the XML Diff Viewer.
4. Click Open.
5. Repeat step 2 through step 4 for the target document, using the set button for the target document window ( ).

By default, Stylus Studio runs the diff calculation automatically when you select the target document. If the default On changes setting has changed, you need to run the diff calculation manually by clicking the Calculate diff button ( ).

Diffing Multiple Documents

This section describes how to use Stylus Studio to diff multiple XML documents.

Before you begin

Before reading this section, you should read Overview, which describes basic information about the Stylus Studio Diff tool, and The XML Diff Viewer, which describes features of the XML Diff Viewer and how to use them.

In this section

This section covers the following topics:

Document Focus

Diffing multiple XML documents is much the same as diffing a pair of documents - you specify the source documents (one at a time), a target document, and Stylus Studio calculates the diff.

Note



When you diff multiple source documents against the target, Stylus Studio considers the target document to be the baseline, and the XML Diff Viewer shows how the source documents vary from the target.

When you diff multiple documents, however, only one source document can have focus at a time. Consider the following illustration, which shows three source documents ( source1.xml, source2.xml, and source3.xml) and a target document ( target.xml).

Figure 141. Example of Document Focus

In this example, the source1.xml document currently has focus. You set the focus on a given source document by selecting that document from the drop-down list at the top of the source document window.

When a source document has focus:

  • Diffs are displayed for that document only, even if you have selected the Merged View tab for display.
  • Clicking the remove document button ( ) removes that document from the XML diff calculation.

Symbols Used in the Target Document Window

When diffing multiple documents, Stylus Studio uses an additional set of symbols in the target document window. These symbols, which are displayed in the side bar of the XML Diff Viewer window alongside the standard set of symbols described in Symbols and Background Colors, indicate the ways in which the change identified in the current source document differs from changes to the same node in other source documents.

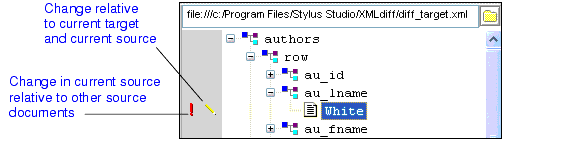

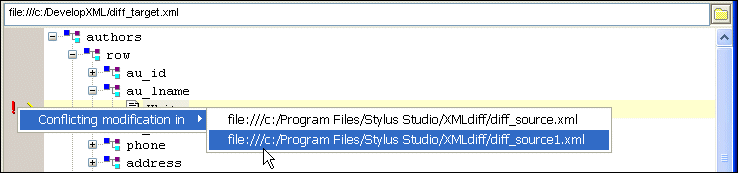

Figure 142. Example of Symbols Used When Diffing Multiple Documents

As shown in Figure 142, symbols in the column closest to the document tree identify the changes relative to the currently selected source. Here, the edit symbol ( ) indicates that the value in the target document, White, differs from that in the currently selected source (which happens to be Black in this example).

The first column of symbols characterize changes in the currently selected source relative to other source documents. Here, for example, the red exclamation point ( ) indicates that there are conflicting modifications in other source documents - that is, other source documents contain a value other than Black. As shown in Figure 143, when you click on a symbol in the first column, Stylus Studio displays

  • A message describing the precise nature of the change
  • A menu that identifies the documents in which the change occurs.
Figure 143. Easily Navigate to Changed Nodes in Other Source Documents

Clicking on a document in this menu changes the current focus to that source document, allowing you to easily navigate to the same node in a different document.

The additional symbols used by Stylus Studio when diffing multiple documents are described in Table 15.

Symbol
Description
Meaning
Yellow circle
Modified in other documents - The object in the target and the current source document are the same, but another source document is different.
Red exclamation point
Conflicting modification in other documents - The object in the current source differs from that in the target document. Other source documents differ from both the current source and target.
Yellow diamond
Same modification in other documents - The source documents all differ from the target document in the same way.
Yellow equal sign
Unchanged in other documents - The current source document differs from the target, but other source documents are the same as the target.
Table 15. Symbols Used to Specify Changes in Source Documents

Example

Consider the example in Figure 144, which illustrates diffing three documents. In this example, the node in question is circled in red.

Figure 144. Diffing Three Documents

Notice that:

  • source1.xml currently has focus.
  • source1.xml and the target document node have the same value ( <abc>)
  • The node in question varies in both of the remaining source documents (it is <abc> in one and <abc> in the other).

Table 16 shows the symbols that might appear based on changing values to the node in question. The example illustrated in Figure 144 is shown in the first row. As values in the source documents change, Stylus Studio changes the diff symbol accordingly.

Symbol
target.xml
source1.xml
source2.xml
source3.xml
<abc>
<abc>
<xyz>
<123>
<abc>
<xyz>
<jkl>
<mno>
<abc>
<xyz>
<xyz>
<xyz>
<abc>
<xyz>
<abc>
<abc>
Table 16. Symbols Used to Specify Changes in Source Documents

Note



Changing the target-source pairing, that is, changing the current source document, affects the symbols that are displayed.

How to Diff Multiple Documents

To diff multiple documents:
1. Select Tools > Options > Show Differences > Files from the Stylus Studio menu.

Stylus Studio displays the XML Diff Viewer.

2. In the source document window, click the add button ( ) to add the first source document.

Stylus Studio displays the Open dialog box.

Tip



You can drag and drop a file into the entry field to load the document in the XML Diff Viewer.

3. Navigate to the document you want to load in the XML Diff Viewer.
4. Click Open.
5. Repeat step 2 through step 4 for additional source documents.
6. Repeat step 2 through step 4 for the target document, using the set button for the target document window ( ).

By default, Stylus Studio runs the diff calculation automatically when you select the target document. If the default On changes setting has changed, you need to run the diff calculation manually by clicking the Calculate diff button ( ).

Modifying Default Diff Settings

Default settings for the behavior of the Diff engine and the appearance of diffed documents and folders are on the Engine and Presentation pages, respectively, of the Options dialog box. The Engine page, shown here, has settings that determine the conditions under which Stylus Studio runs the diff automatically, which items in a document (comments and text, for example) you want the diff engine to ignore, and settings that allow you to choose diffing algorithm tunings optimized for change description or time, for example.

Figure 145. Engine Options Page for XML Diff

Settings on the Engine page are reflected in the Diff editor tool bar, and in the XML Diff menu, shown here.

Figure 146. XML Diff Menu

Tip



You can override Engine page settings using the Diff editor tool bar or the XML Diff menu. Overrides do not change the settings on the Engine page.

In this section

This section covers the following topics:
