Home > Online Product Documentation > Table of Contents > The Convert to XML Editor

The Convert to XML Editor

When you open an input file using Convert to XML, Stylus Studio displays it in the Convert to XML Editor, shown here.

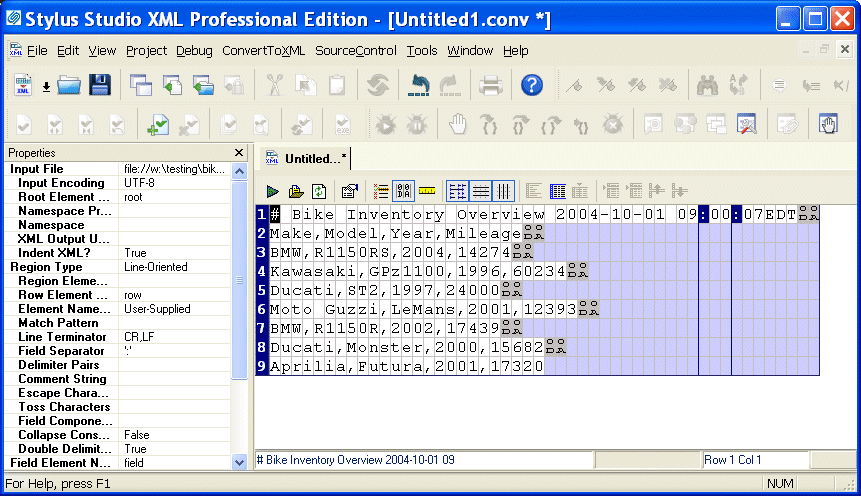

Figure 141. Convert to XML Editor

The input file is displayed in a document grid; properties that both describe the existing file (encoding and size, for example) and define the XML output that will be generated when converting this file and others of its type (root and field element names and whether or not you want the XML to be indented, for example) are displayed in the Properties window.

This section describes the main features of the Convert to XML Editor, including how it interacts with the adapter engine. This section covers the following topics:
