Referencing XML Schemas in the Diagram View

To reference an XML Schema in the Diagram view:

1. Right-click the schema node

2. Click Referenced Schemas on the shortcut menu.

The Referenced Schemas dialog box appears.

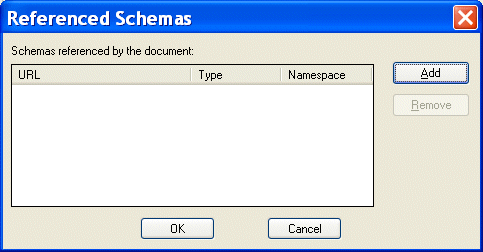

Figure 273. Referenced Schemas Dialog Box

3. Click the Add button.

The Add References to Schema dialog box appears.

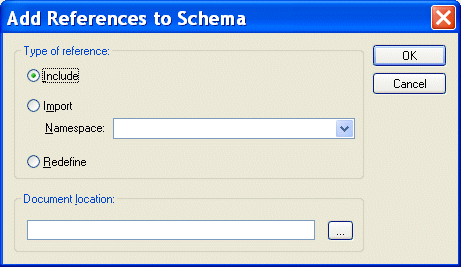

Figure 274. Add References to Schema Dialog Box

4. Specify the type of reference you want to make. If you are redefining an XML Schema, specify the namespace in the Namespace field.

5. Specify the URL of the XML Schema you want to reference. For example:

myfile.xsd

http://www.mycompany.com/schemas/myfile.xsd

\\fileserver\schemas\myfile.xsd

6. Click OK.

You are returned to the Referenced Schemas dialog box.

7. Click OK to add the referenced XML Schema to your XML Schema.
