How to Create a Named or Matched Template

To create a named or matched template:
1. Right-click the XSLT mapper canvas.
2. Select Create Template > Named Template or > Matched Template from the shortcut menu.

Stylus Studio displays the Named Template (or Matched Template) dialog box. (The Named Template dialog box is shown in Figure 207.)

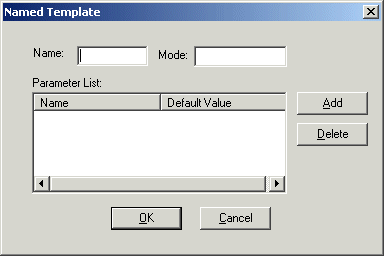

Figure 207. Named Template Dialog Box

3. Enter a name and, optionally, a mode.
Tip



You can use a mode to define the conditions under which a template will be applied by a stylesheet.

4. Optionally, create one or more parameters:
a. Click the Add button.

The Name column becomes editable.

b. Type a parameter name and press Enter.

The Default Value field becomes editable.

c. Type a default value.
d. If you want to define another parameter, click ADD; otherwise, go to step 5.
5. Click OK to finish creating the template.
