Adapter URLs

Stylus Studio uses URLs extensively to reach a variety of data sources. For example, if you use the built-in CSV adapter to open the three.txt file in the \examples\Adapters directory as an XML document, Stylus Studio builds the following URL:

adapter:CSV:newline=crlf:sep=,:first=no:escape=\:quotes="'?file:///c:/Program Files/Stylus Studio XML Professional Edition/examples/Adapters/three.txt

The instructions to the adapter engine from this instance of the adapter URL are described in Table 23.

Table 23. Parts of an Adapter URL
Instruction	Adapter URL String
Use the Comma-Separated Values adapter	adapter:csv
The line separator in the source file is a carriage return/line feed	newline=crlf
The column separator in the source file is a comma	sep=,
The values in the first row of the source file should be used to supply field names	first=yes
The escape character in the source file is a slash \	escape=\
The quote characters in the source file are " and `'`	quotes="'
The source file is three.txt	file:///c:/Program Files/Stylus Studio XML Professional Edition/examples/Adapters/three.txt

While the basic format of the adapter URL is the same from one adapter to another, there are differences. For example:

Built-in adapters have different properties. You should always use Stylus Studio to build your adapter URLs to be sure that it uses valid properties and values. See Constructing Your Own Adapter URL for more information.

The adapter scheme can also be used to reference a user-defined adapter (a .conv file). In this case, the adapter URL specifies only the location of the .conv file; the adapter file itself contains information about its property settings. An adapter URL that references a user-defined adapter might look like this:

adapter:///myAdapter.conv?file:inventory.txt

This adapter uses myAdapter.conv to convert the file inventory.txt to some format (specified in the adapter file when you built it).

Property names in adapter URLs use an internal (generally, abbreviated) format, different from what is displayed in properties list in the Select XML Converter dialog box. Again, to avoid errors in your applications, use Stylus Studio to build your adapter URLs.

Where Adapter URLs are Displayed in Stylus Studio

Adapter URLs are displayed

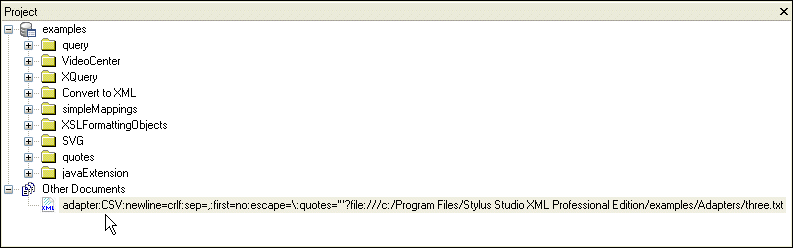

In the Project window (select Show Full URL from the Project window shortcut menu)

Figure 201. Adapter URL Displayed in Project WIndow

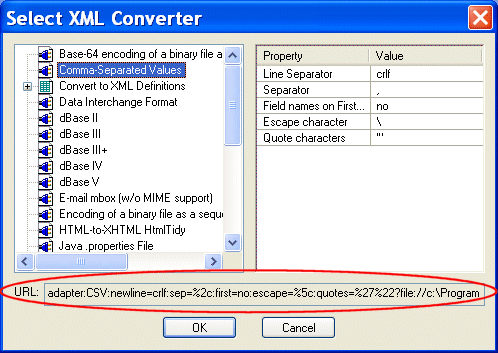

In the URL field of the Select XML Converter dialog box, as shown in Figure 202.

Figure 202. Adapter URL Displayed in the Select XML Converter Dialog Box


Note		Adapter URLs in the URL field of the Select XML Converter dialog box are displayed using escape characters.

You can use either as sources for the adapter URL strings in your Java applications. See Constructing Your Own Adapter URL for more information.
