Example of an XML Pipeline in Stylus Studio

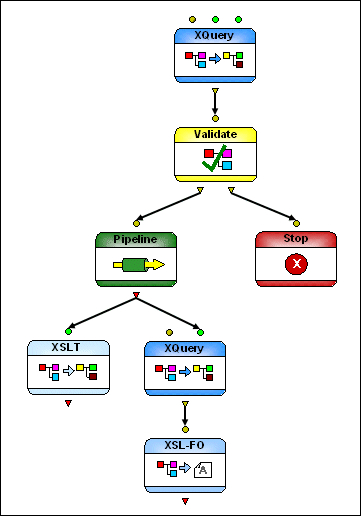

Figure 384 shows the diagram that represents getHoldings.pipeline, which is in the pipelines\stocks folder in the examples project installed with Stylus Studio.

Figure 384. Diagram of getHoldings.pipeline

This particular XML pipeline:

Aggregates two XML input sources

Validates the output of the XQuery using XML Schema and then either

Terminates if the validation fails or

Passes the output to an embedded pipeline for additional processing

Using XSLT, transforms the embedded pipeline's output to HTML

Using XQuery, transforms the same output to PDF using XSL-FO processing
