Profiling XQuery Documents


		XQuery profiling is available only in Stylus Studio XML Enterprise Edition.

In addition to debugging tools for XQuery, Stylus Studio provides the XQuery Profiler, a tool that helps you evaluate the efficiency of your XQuery. By default, the performance metrics gathered by the XQuery Profiler are displayed in a preformatted report, like the one shown here:

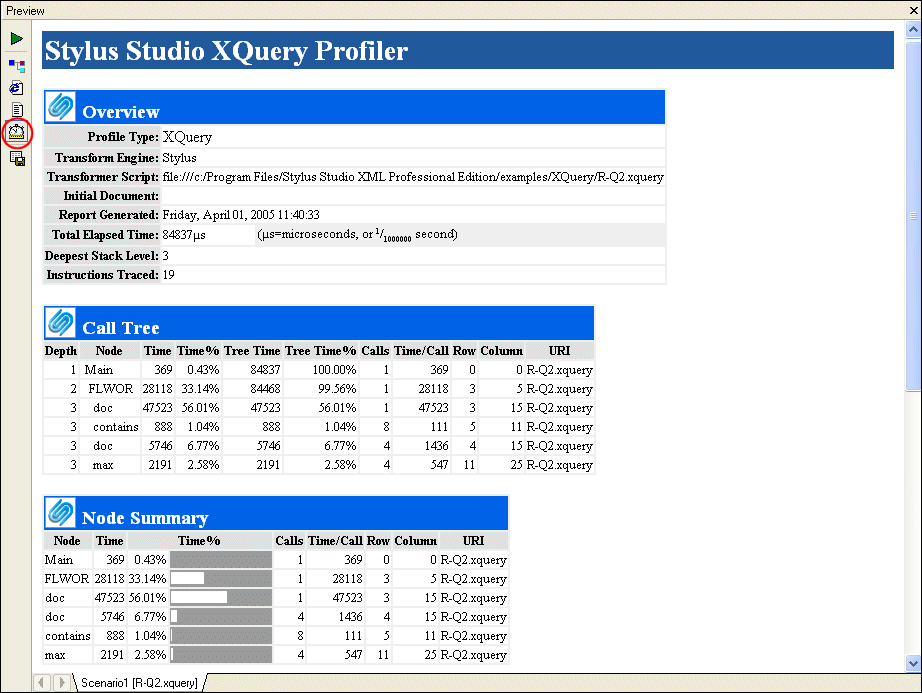

Figure 330. XQuery Profiler Report

The report format is controlled by the default XSLT stylesheet, profile.xsl, in the \Stylus Studio\bin directory. You can customize this stylesheet as required. You can save XQuery Profiler reports as HTML.


Note		XQuery and XSLT Profiler reports use the same XSLT stylesheet.

In addition to generating the standard XQuery Profiler report, you can save the raw data generated by the Profiler and use this data to create your own reports. See Enabling the Profiler for more information about this procedure.


		Watch it! You can view a video demonstration of this feature by clicking the television icon or by clicking this link: watch the XQuery Profiling video.

A complete list of the videos demonstrating Stylus Studio's features is here: http://www.stylusstudio.com/xml_videos.html.

About Performance Metrics

The XQuery Profiler can record three different levels of performance metrics:

A call tree of execution times

Execution times by XQuery expression, and

A detailed log of step-by-step expression execution


Note		Displaying the report for a step-by-step log can take significantly longer than evaluating the XQuery itself. Consider using the Profiler with the first two performance metric options. You can also use the Limit Trace To fields to further restrict the Profiler's scope. If you find you need still more detail (while troubleshooting a performance bottleneck, for example), use the step-by-step setting.

Enabling the Profiler

The XQuery Profiler is off by default. You enable the Profiler on the Profiling Options tab of the XQuery Scenario Properties dialog box.

To enable the XQuery Profiler:

1. Open the Scenario Properties dialog box for the XQuery document. (Click Browse

at the top of the XQuery editor window.)

2. Click the Profiling Options tab.

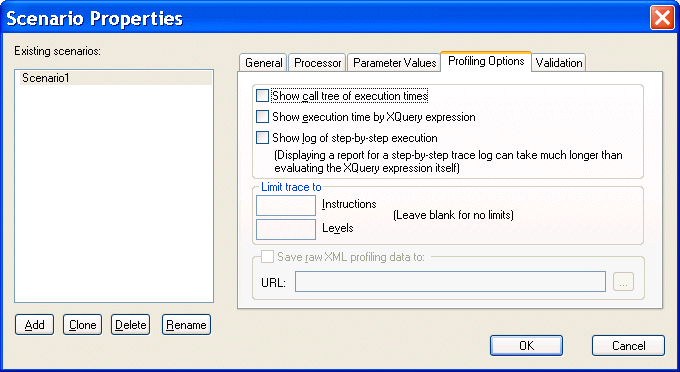

Figure 331. XQuery Profiler Options

3. Select the settings for the performance metrics you want the Profiler to capture.

4. Optionally, save the raw Profiler data to a separate file.


Note		This option is available only after you select one or more performance metrics settings.

5. Click OK.

The next time you preview the XQuery results, the performance metrics you selected are available to you in the XQuery Profiler report (and as raw data if you selected that setting and specified a file).
