Yitzhak KhabinskySubject: XSD v.1.1 validation and Xerces validator support in SS
Author: Yitzhak Khabinsky
Date: 23 Jan 2013 08:42 AM
Originally Posted: 23 Jan 2013 08:40 AM
XSD v.1.1 became a W3C standard on April 5th, 2012.
So it is important to support XSD v.1.1 validation from inside the SS.

So far just two XSD validators are supporting XSD v.1.1:
- Saxonica
- Xerces

Once upon a time SS had a built-in support for the Xerces validator.
Here is the original URL pointing to it:
http://www.stylusstudio.com/xml/xerces.html

The latest version of SS X15 doesn’t come with the Xerces validator out-of-the-box.
Is it possible to re-introduce Xerces validator back?

Regards,
Yitzhak

Postnext
Ivan PedruzziSubject: XSD v.1.1 validation and Xerces validator support in SS
Author: Ivan Pedruzzi
Date: 23 Jan 2013 10:21 AM
Hi Yitzhak,

Stylus Studio exposes the Java built-in schema processor which is for JRE 1.7 based on Xalan Java 2.7.0.

If you need to invoke a different processor you can register your own under Tools->Options->Custom Validation Engines

As far as i can tell XSD 1.1 support in XercesJ is still experimental as stated here
http://xerces.apache.org/xerces2-j/releases.html


Hope this helps
Ivan Pedruzzi
Stylus Studio Team

Postnext
Yitzhak KhabinskySubject: XSD v.1.1 validation and Xerces validator support in SS
Author: Yitzhak Khabinsky
Date: 01 Feb 2013 08:39 AM
Hi Ivan,

My understanding is that Xerces-J 2.11.0 is implemented as a library.
It is not a command line executable.
Due to its nature it is not callable directly from SS.

So the only way to integrate it with SS is a programming effort.

Regards,
Yitzhak

Postnext
Ivan PedruzziSubject: XSD v.1.1 validation and Xerces validator support in SS
Author: Ivan Pedruzzi
Date: 03 Feb 2013 06:06 PM
Yitzhak,

In order to get support for for XSD 1.1 you have to download the beta package from Apache called Xerces-J-bin.2.11.0-xml-schema-1.1-beta.zip

To run Xerces as custom validation engine in Stylus Studio create a simple batch file at ${StylusDir}\Custom Validation Engines\Xerces\xercesj.bat with the following content

ECHO OFF
SET XERCES_ROOT=c:\xerces211\
SET BOOT=-Xbootclasspath/p:path:
SET BOOT=%BOOT%;%XERCES_ROOT%xercesImpl.jar
SET BOOT=%BOOT%;%XERCES_ROOT%xml-apis.jar
SET BOOT=%BOOT%;%XERCES_ROOT%org.eclipse.wst.xml.xpath2.processor_1.1.0.jar
SET BOOT=%BOOT%;%XERCES_ROOT%icu4j.jar
SET BOOT=%BOOT%;%XERCES_ROOT%cupv10k-runtime.jar
SET BOOT=%BOOT%;%XERCES_ROOT%xercesSamples.jar
SET MAIN=jaxp.SourceValidator
SET LANGUAGE=-xsd11
SET JAVA="c:\Program Files (x86)\Java\jre7\bin\java.exe"
ECHO ON
%JAVA% %BOOT% %MAIN% %LANGUAGE% -i %1

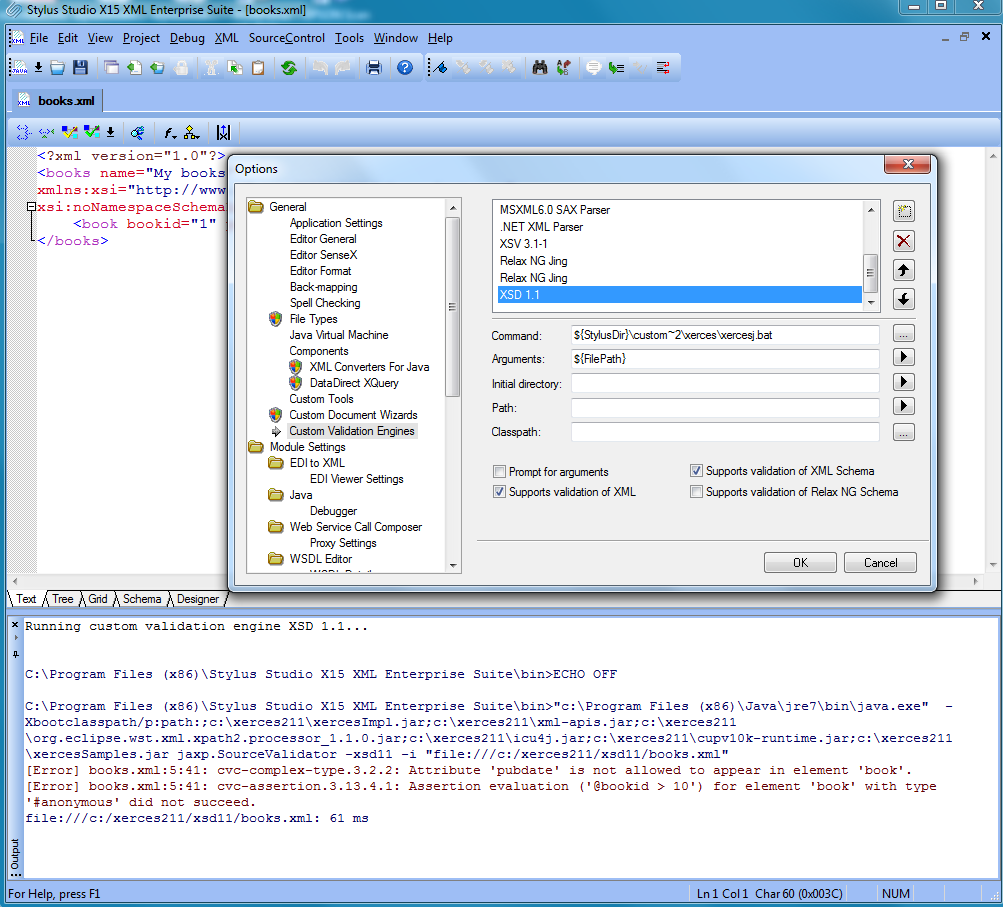

Then create a custom validation engine with the following parameters

Command: ${StylusDir}\Custom Validation Engines\Xerces\xercesj.bat
Arguments: ${FilePath}


Does it help?


Ivan Pedruzzi
Stylus Studio Team

Postnext
Yitzhak KhabinskySubject: XSD v.1.1 validation and Xerces validator support in SS
Author: Yitzhak Khabinsky
Date: 05 Feb 2013 01:45 PM
Hi Ivan,

Thanks a lot.
The provided batch file works like a charm for the Xerces-J with XSD 1.1 turned on.

Regards,
Yitzhak

Postnext
Stephan GlurSubject: XSD v.1.1 validation and Xerces validator support in SS
Author: Stephan Glur
Date: 08 Jul 2013 02:25 AM
Originally Posted: 05 Jul 2013 04:40 AM
I get this error message when setting up Xerces validation like described above:

Running custom validation engine Xerces2.11...

Command line failed:
C:\PROGRA~1\STYLUS~1\bin\Custom Validation Engines\Xerces\xercesj.bat "file:///h:/data/Dewey 082_Wegsortieren/erledigt/ZB Zürich/oai_3Aeth-bib-pub_3AEBI01-005826570_out.xml"
Initial Directory:
(null)
Error Message: Das System kann die angegebene Datei nicht finden.


Can anyone help, please?

Postnext
Ivan PedruzziSubject: XSD v.1.1 validation and Xerces validator support in SS
Author: Ivan Pedruzzi
Date: 05 Jul 2013 12:11 PM
Hi Stephan,

Trying using all short paths in the Command field like this
${StylusDir}\custom~2\xerces\xercesj.bat


Hope this helps
Ivan Pedruzzi
Stylus Studio Team

Posttop
Stephan GlurSubject: XSD v.1.1 validation and Xerces validator support in SS
Author: Stephan Glur
Date: 08 Jul 2013 02:25 AM
Originally Posted: 08 Jul 2013 02:24 AM
Hey Ivan!

Finally I just entered the complete absolute path, and it worked.


Thanks for your help!!
