Tree Representation of a Sample XML Document

When you query a document, it can be helpful to think of a tree representation of your data. A tree that represents the bookstore.xml document appears in Figure 234 (and is continued in Figure 235). To use Stylus Studio to view a similar tree for any XML document, open the XML document in Stylus Studio and select the Tree tab.

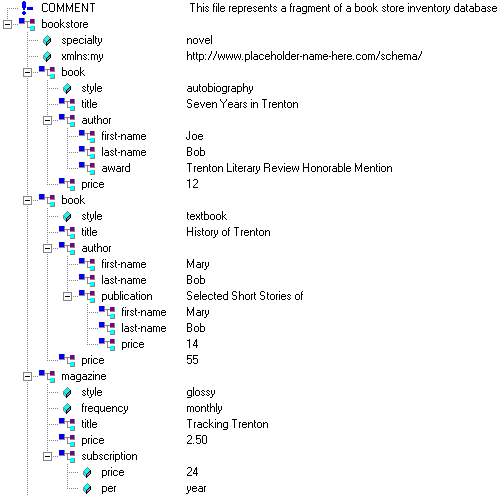

Figure 234. Tree Display of an XML Document

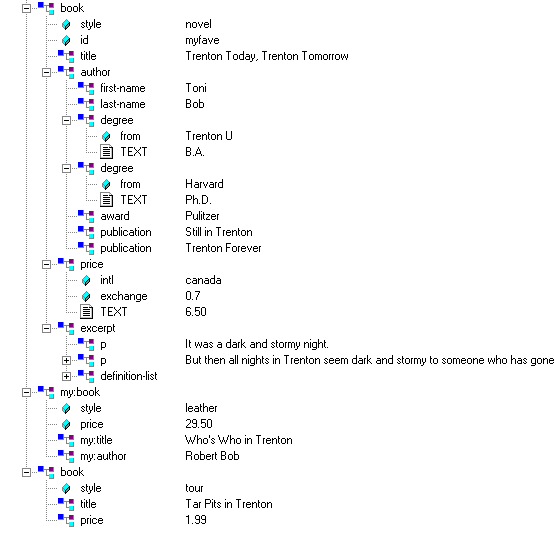

Figure 235. Tree Display of an XML Document (continued)
