Michael SienkiewiczSubject: What happened to the EDI Wizards
Author: Michael Sienkiewicz
Date: 04 Jun 2010 03:10 PM
I am trying to do one of the video tutorial where we take EDI to XML and back again.

However when I go to the Document Wizard as the tutorial asks I do not have the EDIFACT to XML wizard selection. I will also need the X12 to XML option.

I am using a fully licensed version of Stylus Studio 2010 Enterprise Edition.

Thanks!


this is what my Wizard shows

This is what the Demo Wizard shows

Postnext
Ivan PedruzziSubject: What happened to the EDI Wizards
Author: Ivan Pedruzzi
Date: 04 Jun 2010 04:06 PM

Michael,

Stylus Studio now has a dedicated module called EDI to XML.
http://www.stylusstudio.com/edi/edi_to_xml.html

Have a look at the video tutorial at
http://www.stylusstudio.com/xml_video_list.html#EDI to XML

Hope this helps
Ivan Pedruzzi
Stylus Studio Team

Postnext
Michael SienkiewiczSubject: What happened to the EDI Wizards
Author: Michael Sienkiewicz
Date: 04 Jun 2010 04:13 PM
Thanks,

When I do this the box to generate HIPAA loops is greyed out when I select a HIPAA transaction (i.e. 834).

What can I do to get this piece activated?

Cheers!

Postnext
Tony LavinioSubject: What happened to the EDI Wizards
Author: Tony Lavinio
Date: 04 Jun 2010 05:26 PM
Are you selecting 834 under HIPAA, or 834 under X12? You will only
get that option when using the HIPAA dialect, which we treat separately
from X12.

Postnext
Michael SienkiewiczSubject: What happened to the EDI Wizards
Author: Michael Sienkiewicz
Date: 04 Jun 2010 09:59 PM
Originally Posted: 04 Jun 2010 10:00 PM
So how do I get HIPAA transactions

Postnext
Tony LavinioSubject: What happened to the EDI Wizards
Author: Tony Lavinio
Date: 07 Jun 2010 08:30 AM
File > Document Wizards... > XML Editor > EDI to XSD

then under "Dialect:" choose "HIPAA" and not "X12".

For the 4010 834, you then want to select version "004010X095A1".
If you want the 5010 834, it's "005010X220".

Postnext
Michael SienkiewiczSubject: What happened to the EDI Wizards
Author: Michael Sienkiewicz
Date: 07 Jun 2010 08:44 AM
As noted in the jpg attached to my first posting, that option does not exist on my wizard. I believe that although I have loaded the Enterprise Edition I also need to load something else to get this to work.

Is there a location where one can download these additional components?

As I mentioned before, I am using the 2010 version.

Cheers!

Postnext
Tony LavinioSubject: What happened to the EDI Wizards
Author: Tony Lavinio
Date: 07 Jun 2010 10:15 AM
It is available in the Enterprise and Integration Editions.
Which version are you using? The current release is 2010,
and build number 1540c (which you can see from Help > About).

Postnext
Michael SienkiewiczSubject: What happened to the EDI Wizards
Author: Michael Sienkiewicz
Date: 08 Jun 2010 07:53 AM
Originally Posted: 07 Jun 2010 10:48 AM
1540b

This is the only version I can find on the website.

I have a license ().

Is there another place to download this version?

Thanks!

Postnext
Tony LavinioSubject: What happened to the EDI Wizards
Author: Tony Lavinio
Date: 08 Jun 2010 07:55 AM
Please don't post your license key online.

Are you sure the version you have is Enterprise or Integration Edition?
Build 1540b should contain the HIPAA conversions.

Meanwhile, we will check our records and get back to you.

Postnext
Michael SienkiewiczSubject: What happened to the EDI Wizards
Author: Michael Sienkiewicz
Date: 08 Jun 2010 09:06 AM
Yeah, dumb to post key. Sorry but this is real frustrating and I have deadlines to meet.

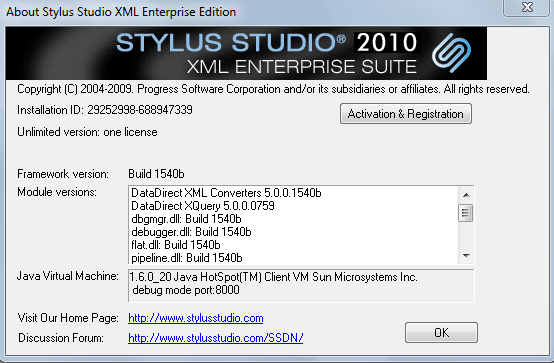

This is the enterprise edition. I have enclosed a screenshot of the 'About' Window.

Cheers!


About Stylus Window

Postnext
Tony LavinioSubject: What happened to the EDI Wizards
Author: Tony Lavinio
Date: 08 Jun 2010 12:38 PM
I can see the icon to click right on your first screenshot.

"File" menu.
Then "Document Wizards..." choice.
Then "XML Editor" tab.
Then the third icon, "EDI to XSD".

From there choose Dialect: HIPAA and then your version and your message.

Postnext
Michael SienkiewiczSubject: What happened to the EDI Wizards
Author: Michael Sienkiewicz
Date: 08 Jun 2010 12:50 PM
Originally Posted: 08 Jun 2010 12:49 PM
And herein is my problem.

As you can see from the screen shot the 'Generate HIPAA Nested Loop Structure' checkbox is greyed out.

Cheers!



Postnext
Tony LavinioSubject: What happened to the EDI Wizards
Author: Tony Lavinio
Date: 08 Jun 2010 12:57 PM
What happens when you use HIPAA as the dialect instead of X12, as I
asked in one of my earlier replies?

Posttop
Michael SienkiewiczSubject: What happened to the EDI Wizards
Author: Michael Sienkiewicz
Date: 08 Jun 2010 01:00 PM
K.... that works better.... thanks..


UnknownNoname(52).
