An if is a component that represents a condition (if... then... else...). You can use if components to control report content. You can insert if components within other components (within a table cell, for example).

Creating an If

The easiest way to create an if component in XML Publisher is to select Report > Insert > If from the Stylus Studio menu, or select Insert If from the canvas short-cut menu.

The if component's context is established automatically only if you insert within another component - such as a table or list - whose context is already set. The if component does not inherit its context from the body component.

Graphical Representation

In the XML Publisher canvas, an if component is represented as two tabs, true and false, within a bounding box drawn with a dashed line. Figure 465 shows an empty if component.

Figure 465. If Component


We need to create a report that contains a simple table that lists the title and rating for all movies in the videos.xml document. In addition, if the movie carries an `R' rating, we want to display the R-rated symbol ( ) for emphasis. A sample of the report is

Figure 466. Example of an If Component

To create this report in XML Publisher, we would:

1. Create a table by dragging the video repeating element and dropping it on the canvas. This establishes the context for the cells in the table.
2. Drag and drop the title element in the table's first cell (as a value).
3. Right-click and insert an if component in the table's second cell.
4. Select the if component and click the If tab in the Properties window.
5. Set the Condition property to rating='R'.
6. Specify the true condition:
a. Select the true tab.
b. Right-click and select Insert Image.
c. Set the image component's Source property to the location of the image we want to display for R-rated movies ( c:\MyProjects\images\r_rating.gif, for example).

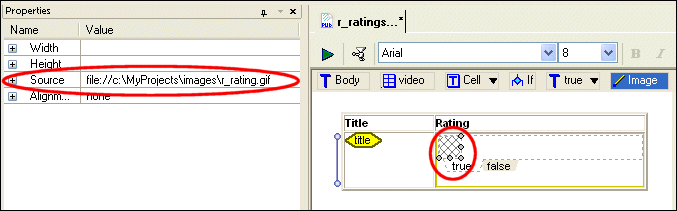

Figure 467. Setting the True Condition

7. Specify the false condition:
a. Select the false tab.
b. Drag the rating node from the data sources panel and insert it as a value.

Figure 468. Setting the False Condition
