Joe Loyzaga

Subject: Can SS do this?
Author: Joe Loyzaga
Date: 10 Jan 2017 10:08 PM

I have an xml and xsl that I want to modify. I want to use SS but I'm not sure it will work for this. I am attaching the files and want to know if I can use SS to modify the xsl and be able to see it via a window to view the pdf output

Joe

PDetails.xsl
xsl1

PStringTable.xsl
xsl2

Results.xml
xml input

Ivan Pedruzzi

Subject: Can SS do this?
Author: Ivan Pedruzzi
Date: 11 Jan 2017 03:01 AM
Originally Posted: 11 Jan 2017 03:00 AM

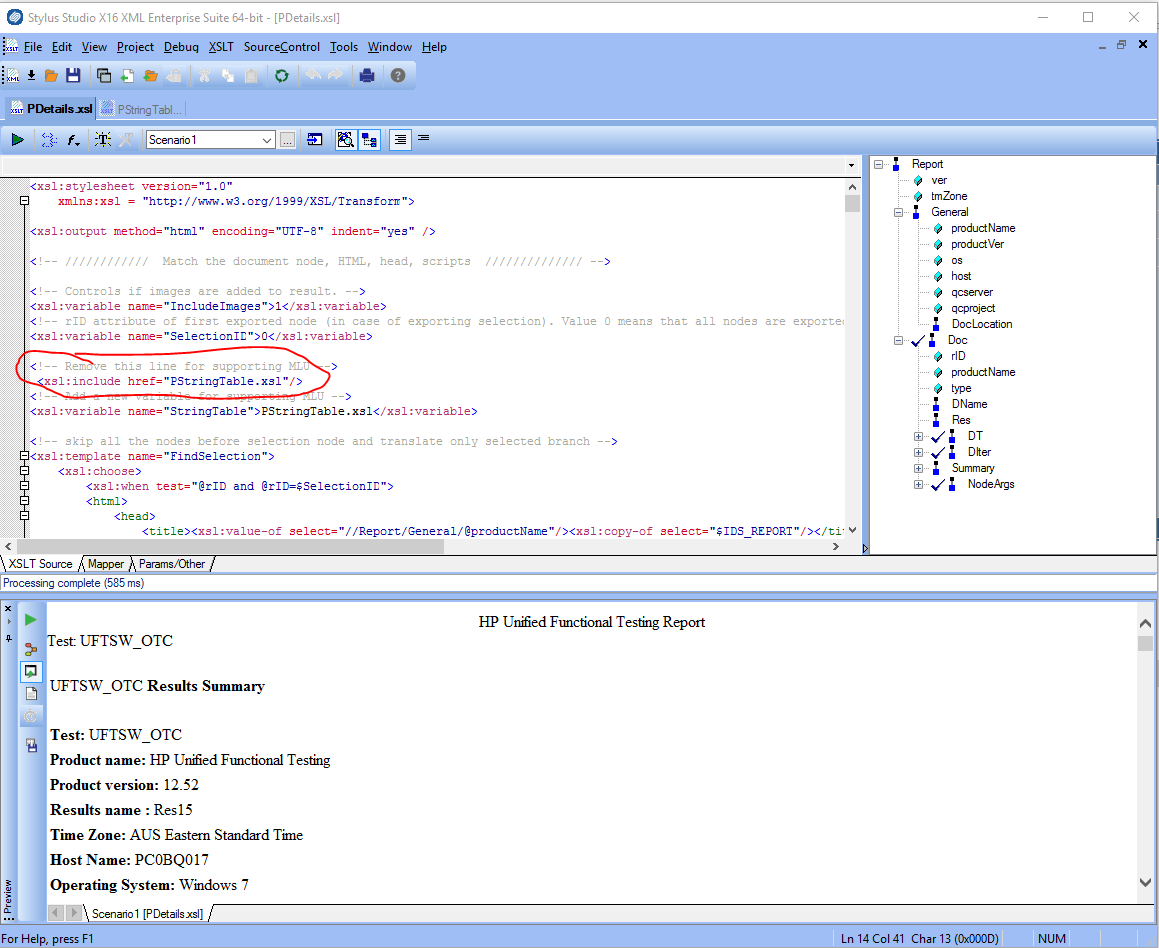

I have no problem in running your this stylesheet as soon as remove the comment for following include

<xsl:include href="PStringTable.xsl"/>

The output of this transformation is HTML not PDF.

Ivan Pedruzzi
Stylus Studio Team


Joe Loyzaga

Subject: Can SS do this?
Author: Joe Loyzaga
Date: 11 Jan 2017 03:14 AM

I can't view in browser or preview - can you outline what you did?

Joe Loyzaga

Subject: Can SS do this?
Author: Joe Loyzaga
Date: 11 Jan 2017 03:15 AM

I can't view in browser or preview - can you outline what you did?

Ivan Pedruzzi

Subject: Can SS do this?
Author: Ivan Pedruzzi
Date: 11 Jan 2017 03:21 AM

Did you set the source XML in the scenario dialog?

Click on the toolbar button "..." than set the source XML URL

Ivan Pedruzzi
Stylus Studio Team

Joe Loyzaga

Subject: Can SS do this?
Author: Joe Loyzaga
Date: 11 Jan 2017 03:22 AM

tried opening xsl with SS and it keeps not responding

Ivan Pedruzzi

Subject: Can SS do this?
Author: Ivan Pedruzzi
Date: 18 Jan 2017 04:49 AM

The problem was solved after restating the machine

Ivan Pedruzzi
Stylus Studio Team

Joe Loyzaga

Subject: Can SS do this?
Author: Joe Loyzaga
Date: 18 Jan 2017 10:39 PM

Can you help me out with this xml?
I’m wondering how its getting the first part of it?
Its the results.xml
<?xml version="1.0"?>
<!DOCTYPE Report
[
<!ELEMENT Report (General ,(Doc|BPT)) >
<!ATTLIST Report ver CDATA #REQUIRED tmZone CDATA #REQUIRED >

<!ELEMENT General ( DocLocation ) >
<!ATTLIST General productName CDATA #REQUIRED productVer CDATA #REQUIRED os CDATA #REQUIRED host CDATA #REQUIRED qcserver CDATA #IMPLIED qcproject CDATA #IMPLIED SolManSolutionId CDATA #IMPLIED SolManProjectId CDATA #IMPLIED SolManTestPlanId CDATA #IMPLIED SolManTestPackageId CDATA #IMPLIED SolManUserInfoData CDATA #IMPLIED >

<!ELEMENT BPT (DName,Res,DVer?,TSet?,TInst?,NodeArgs,AdditionalInfo*,Doc*) >
<!ATTLIST BPT rID ID #REQUIRED >

<!ELEMENT Doc (DName,ConfName?,Res,DVer?,TSet?,TInst?,RunType?,DT?,AdditionalInfo*,Step*,DIter*,Step*,Action*,Doc*,Summary?,TestMaintenanceSummary*,NodeArgs?) >
<!ATTLIST Doc rID ID #REQUIRED type (Test|BC|BPTWrapperTest|Flow|Group|Action) "Test" productName CDATA #REQUIRED BCIter CDATA #IMPLIED >

<!ELEMENT RunType ( #PCDATA )>
<!ATTLIST RunType fmStep (False|True) "False" batch (False|True) "False" upDesc (False|True) "False" upChk (False|True) "False" upAS (False|True) "False">

<!ELEMENT DName ( #PCDATA ) >

<!ELEMENT ConfName ( #PCDATA ) >

<!ELEMENT Res ( #PCDATA ) >

<!ELEMENT AdditionalInfo (AdditionalDataName,AdditionalDataValue ) >

<!ELEMENT AdditionalDataName ( #PCDATA ) >

<!ELEMENT AdditionalDataValue ( #PCDATA ) >

<!ELEMENT DVer ( #PCDATA ) >

<!ELEMENT TSet ( #PCDATA ) >

<!ELEMENT TInst ( #PCDATA ) >

<!ELEMENT DIter (Step*,Action+,Summary?,NodeArgs)>
<!ATTLIST DIter rID ID #REQUIRED iterID CDATA #REQUIRED>

<!ELEMENT DocLocation ( #PCDATA )>

<!ELEMENT Action (AName,AIter*,(Step|HtmlStep|Action)*, Summary,ActionMaintenanceSummary*, NodeArgs ) >
<!ATTLIST Action rID ID #REQUIRED>

<!ELEMENT AIter ((Step|HtmlStep|Action)*,DataMapping?, Summary?,NodeArgs) >
<!ATTLIST AIter rID ID #REQUIRED iterID CDATA #REQUIRED isCountable (False|True) "False" >

<!ELEMENT AName ( #PCDATA ) >

<!ELEMENT TestMaintenanceSummary (ActionMaintenanceSummary*) >
<!ATTLIST TestMaintenanceSummary ObjectsAdded CDATA #REQUIRED ObjectsUpdated CDATA #REQUIRED StepsUpdated CDATA #REQUIRED StepsComments CDATA #REQUIRED><!ELEMENT ActionMaintenanceSummary (ObjectChange* ) >
<!ATTLIST ActionMaintenanceSummary Action CDATA #REQUIRED Objects CDATA #REQUIRED Updated CDATA #REQUIRED LinesTotal CDATA #REQUIRED Added CDATA #REQUIRED LinesUpdated CDATA #REQUIRED>

<!ELEMENT ObjectChange (Hierarchy, PropertyChangeList* ) >
<!ATTLIST ObjectChange Operation CDATA #IMPLIED OriginalRepository CDATA #IMPLIED>

<!ELEMENT PropertyChangeList (PropertyDef*) >

<!ELEMENT PropertyDef (OriginalValue, NewValue) >
<!ATTLIST PropertyDef PropName CDATA #REQUIRED OriginRegularExpression (True|False) "False" NewRegularExpression (True|False) "False" AddedProperty (True|False) "False" >

<!ELEMENT OriginalValue ( #PCDATA )>

<!ELEMENT NewValue ( #PCDATA )>

<!ELEMENT Hierarchy (ObjectName, Hierarchy*) >
<!ATTLIST Hierarchy MicClass CDATA #REQUIRED>

<!ELEMENT ObjectName ( #PCDATA ) >

<!ELEMENT Step (Obj,Details,Time,TimeTick* ,(Step|HtmlStep|Doc)*, DataMapping?, NodeArgs) >
<!ATTLIST Step rID ID #REQUIRED retval CDATA #IMPLIED>

<!ELEMENT HtmlStep (HTML,TimeTick*,(Step|HtmlStep|Doc)*,NodeArgs) >
<!ATTLIST HtmlStep rID ID #REQUIRED >

<!ELEMENT Obj ( #PCDATA ) >
<!ATTLIST Obj plainTxt (False|True) "True">

<!ELEMENT Details ( #PCDATA ) >
<!ATTLIST Details plainTxt (False|True) "True">

<!ELEMENT Time ( #PCDATA ) >

<!ELEMENT HTML ( #PCDATA ) >

<!ELEMENT Disp ( #PCDATA ) >

<!ELEMENT TimeTick ( #PCDATA ) >

<!ELEMENT DataMapping ( DataMappedItem* )>
<!ELEMENT DataMappedItem EMPTY >
<!ATTLIST DataMappedItem dsName CDATA #REQUIRED >
<!ATTLIST DataMappedItem rowId CDATA #REQUIRED >

<!ELEMENT NodeArgs (Disp,TopPane?,BtmPane?,ExtendedInfo? )>
<!ATTLIST NodeArgs eType CDATA #REQUIRED icon CDATA #REQUIRED nRep CDATA #REQUIRED UserNote CDATA #IMPLIED filter (False|True) "True">
<!ATTLIST NodeArgs status (Passed|Failed|Done|Warning|Information) "Done">
<!ATTLIST NodeArgs iconSel CDATA #IMPLIED nType CDATA #IMPLIED MovieMarker CDATA "">
<!ATTLIST NodeArgs Source CDATA #IMPLIED SourceLine CDATA #IMPLIED StepFlowItemKey CDATA #IMPLIED >

<!ELEMENT TopPane (Path)>

<!ELEMENT BtmPane ( (Path|WR)?,ASHilite?)>
<!ATTLIST BtmPane vType CDATA "HTML">

<!ELEMENT Path ( #PCDATA ) >

<!ELEMENT ASHilite ( #PCDATA ) >

<!ELEMENT WR ( #PCDATA ) >

<!ELEMENT ExtendedInfo ( StepData ) >

<!ATTLIST ExtendedInfo StepType CDATA #REQUIRED>
<!ELEMENT DT (NodeArgs) >
<!ATTLIST DT rID ID #REQUIRED>

<!ELEMENT Summary (Param*)>
<!ATTLIST Summary sTime CDATA #IMPLIED eTime CDATA #IMPLIED passed CDATA #IMPLIED failed CDATA #IMPLIED warnings CDATA #IMPLIED retval CDATA #IMPLIED stopped (False|True) "False" >

<!ELEMENT Param (ParamName,ParamVal)+ >
<!ATTLIST Param paramInOut (In|Out) "In">

<!ELEMENT ParamName ( #PCDATA ) >

<!ELEMENT ParamVal ( #PCDATA ) >

]

Ivan Pedruzzi

Subject: Can SS do this?
Author: Ivan Pedruzzi
Date: 19 Jan 2017 02:52 AM

What you are showing is a DTD XML definition which can be embedded in the prolog of the XML document, this is perfectly legal.

Ivan Pedruzzi
Stylus Studio Team

Joe Loyzaga

Subject: Can SS do this?
Author: Joe Loyzaga
Date: 19 Jan 2017 03:30 AM

so you are saying that the program that produced this xml also added the dtd? So if I want to add variables to xml then i need to change the dtd so it can be embeded?

Ivan Pedruzzi

Subject: Can SS do this?
Author: Ivan Pedruzzi
Date: 19 Jan 2017 04:10 AM

<<"Add variables">> ?

Which software is generating your XML?

what you are trying to accomplish?

Ivan Pedruzzi
Stylus Studio Team

Joe Loyzaga

Subject: Can SS do this?
Author: Joe Loyzaga
Date: 19 Jan 2017 04:16 AM

hp uft is generating that html with the xsl but i need to add a few variables soI'm looking at whare it does this

Ivan Pedruzzi

Subject: Can SS do this?
Author: Ivan Pedruzzi
Date: 19 Jan 2017 04:26 AM

You need to edit the XSLT (PDetails.xsl) in order to change the resulting HTML.

XML --> [XSLT] --> HTML

What exactly you need to change in the HTML output?
If you are really specific in your description we might help.

Ivan Pedruzzi
Stylus Studio Team

Joe Loyzaga

Subject: Can SS do this?
Author: Joe Loyzaga
Date: 19 Jan 2017 09:33 PM

>You need to edit the XSLT
>(PDetails.xsl) in order to
>change the resulting HTML.
>
>XML --> [XSLT] --> HTML
>
>What exactly you need to
>change in the HTML output?
>If you are really specific in
>your description we might
>help.
>
>
>Ivan Pedruzzi
>Stylus Studio Team
I need to add 1 variable so that I can use it in a table I am going to add to the xsl. The table is 3 rows and 2 columns that contain derived data from the run like @productName and how its referred. I don't know where to do this so that its available for the report. Do I add it in the DTD? If so I'm not sure how this would work - dont undrstand DTD. Can you advise?
