sarang dhekne

Subject: StylusStudio Crash: Error: GetTextMetrics( Arial Unicode MS) failed. The operation completed successfully
Author: sarang dhekne
Date: 19 Jun 2008 10:13 AM

I am trying to open an xslt for debug. This xslt has unicode characters.

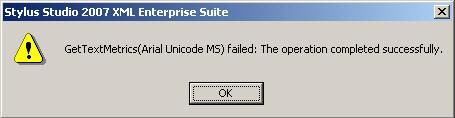

Stylus studio crashes with message "GetTextMetrics( Arial Unicode MS) failed. The operation completed successfully." I have checked installation and I do have Arial Unicode MS font on my machine with works with other applications.

Can you help me please?
Thanks

(Deleted User)

Subject: StylusStudio Crash: Error: GetTextMetrics( Arial Unicode MS) failed. The operation completed successfully
Author: (Deleted User)
Date: 19 Jun 2008 11:52 AM

Hi,
the error is indeed strange; the call to get the metrics for that font returned FALSE, but without specifying any detail.
Which operating system are you running?

Alberto

sarang dhekne

Subject: StylusStudio Crash: Error: GetTextMetrics( Arial Unicode MS) failed. The operation completed successfully
Author: sarang dhekne
Date: 19 Jun 2008 12:52 PM

Windows 2000
Build: 5.00.2195
Service Pack 4

(Deleted User)

Subject: StylusStudio Crash: Error: GetTextMetrics( Arial Unicode MS) failed. The operation completed successfully
Author: (Deleted User)
Date: 20 Jun 2008 09:40 AM

Hi,
I tried the latest Stylus Studio 2008 Rel 2 on Windows 200 SP + IE 6 (that didn't have the Arial Unicode MS font; I had to install from an XP machine) and it was able to use it to display XML documents.
How did you get the Arial Unicode MS font? (MS Office?) Can you try, as a work around, to go to Tools | Options | Editor Format and pick a default font that is able to display a wide range of Unicode characters (e.g. Lucida Sans Unicode)?

Alberto

sarang dhekne

Subject: StylusStudio Crash: Error: GetTextMetrics( Arial Unicode MS) failed. The operation completed successfully
Author: sarang dhekne
Date: 20 Jun 2008 10:12 AM
Originally Posted: 20 Jun 2008 10:10 AM

Hi,
I had a 2007 copy of stylus studio. I tried same thing on that copy which gave same error but didn't crash.

Now in 2008 I tried changing font to Lucida before opening xslt.
Now It doesn't crash but I have Kanji/Katakana characters in my xslt file. It can not display japanese characters.
I am attaching sample for your reference.

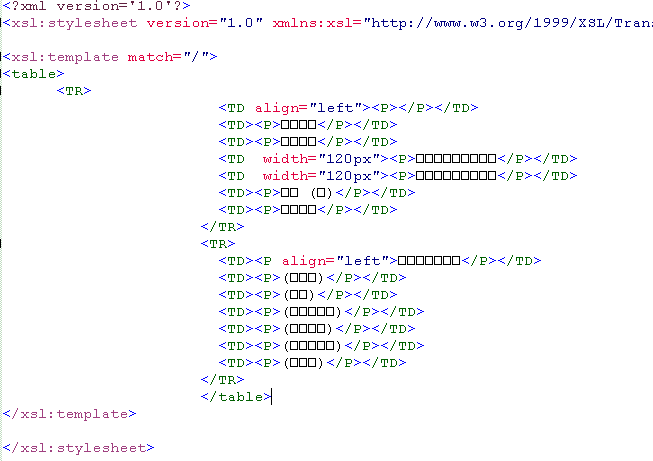

Also attaching screenshot from stylus studio.

I really appreciate your patience and help.
Thanks,
Sarang

sample(8).xsl
Sample japanese xsl file

(Deleted User)

Subject: StylusStudio Crash: Error: GetTextMetrics( Arial Unicode MS) failed. The operation completed successfully
Author: (Deleted User)
Date: 26 Jun 2008 11:18 AM

Hi,
on my system I can correctly view the XSL file by selecting the Tahoma font. Do you have it available on Windows 2000?
We are still trying to reproduce the error in house; as Arial Unicode MS doesn't come by default with Windows 2000 SP4, which version of MS Office do you have installed (2000/2002/2003)?

Thanks,
Alberto

sarang dhekne

Subject: StylusStudio Crash: Error: GetTextMetrics( Arial Unicode MS) failed. The operation completed successfully
Author: sarang dhekne
Date: 26 Jun 2008 11:44 AM
Originally Posted: 26 Jun 2008 11:39 AM

I use office 2003 service pack 2

on

Windows 2000
Build: 5.00.2195
Service Pack 4
