Universal Business Language 1.0

Table of Contents

top

Schema Document Properties

Target Namespace urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0
Version 1.0
Element and Attribute Namespaces
  • Global element and attribute declarations belong to this schema's target namespace.
  • By default, local element declarations belong to this schema's target namespace.
  • By default, local attribute declarations have no namespace.

Declared Namespaces

Prefix Namespace
Default namespace urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0
xml http://www.w3.org/XML/1998/namespace
ccts urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0
xsd http://www.w3.org/2001/XMLSchema
Schema Component Representation
<xsd:schema targetNamespace="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0" elementFormDefault="qualified" attributeFormDefault="unqualified" version="1.0">
...
</xsd:schema>
top

Global Schema Components

Element: Component

Name Component
Type ccts:ComponentType
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:Component>
<ComponentType> ... </ComponentType> [1]
<DictionaryEntryName> ... </DictionaryEntryName> [1]
<Version> ... </Version> [0..1]
<Definition> ... </Definition> [1]
<Cardinality> ... </Cardinality> [0..1]
<ObjectClassQualifier> ... </ObjectClassQualifier> [0..1]
<ObjectClass> ... </ObjectClass> [0..1]
<PropertyTermQualifier> ... </PropertyTermQualifier> [0..1]
<PropertyTermPossessiveNoun> ... </PropertyTermPossessiveNoun> [0..1]
<PropertyTermPrimaryNoun> ... </PropertyTermPrimaryNoun> [0..1]
<PropertyTerm> ... </PropertyTerm> [0..1]
<RepresentationTerm> ... </RepresentationTerm> [0..1]
<DataTypeQualifier> ... </DataTypeQualifier> [0..1]
<DataType> ... </DataType> [0..1]
<AssociatedObjectClassQualifier> ... </AssociatedObjectClassQualifier> [0..1]
<AssociatedObjectClass> ... </AssociatedObjectClass> [0..1]
<AlternativeBusinessTerms> ... </AlternativeBusinessTerms> [0..1]
<Examples> ... </Examples> [0..1]
</ccts:Component>
Schema Component Representation
<xsd:element name="Component" type="ccts:ComponentType"/>
top

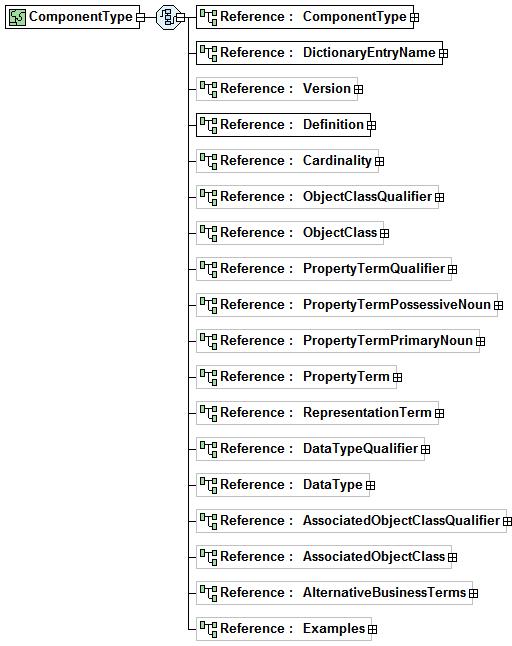

Complex Type: ComponentType

Super-types: None
Sub-types: None
Name ComponentType
Abstract no
Diagram
XML Instance Representation
<...>
<ComponentType> ... </ComponentType> [1]
<DictionaryEntryName> ... </DictionaryEntryName> [1]
<Version> ... </Version> [0..1]
<Definition> ... </Definition> [1]
<Cardinality> ... </Cardinality> [0..1]
<ObjectClassQualifier> ... </ObjectClassQualifier> [0..1]
<ObjectClass> ... </ObjectClass> [0..1]
<PropertyTermQualifier> ... </PropertyTermQualifier> [0..1]
<PropertyTermPossessiveNoun> ... </PropertyTermPossessiveNoun> [0..1]
<PropertyTermPrimaryNoun> ... </PropertyTermPrimaryNoun> [0..1]
<PropertyTerm> ... </PropertyTerm> [0..1]
<RepresentationTerm> ... </RepresentationTerm> [0..1]
<DataTypeQualifier> ... </DataTypeQualifier> [0..1]
<DataType> ... </DataType> [0..1]
<AssociatedObjectClassQualifier> ... </AssociatedObjectClassQualifier> [0..1]
<AssociatedObjectClass> ... </AssociatedObjectClass> [0..1]
<AlternativeBusinessTerms> ... </AlternativeBusinessTerms> [0..1]
<Examples> ... </Examples> [0..1]
</...>
Schema Component Representation
<xsd:complexType name="ComponentType">
<xsd:sequence>
<xsd:element ref="ComponentType" minOccurs="1" maxOccurs="1"/>
<xsd:element ref="DictionaryEntryName" minOccurs="1" maxOccurs="1"/>
<xsd:element ref="Version" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="Definition" minOccurs="1" maxOccurs="1"/>
<xsd:element ref="Cardinality" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="ObjectClassQualifier" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="ObjectClass" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="PropertyTermQualifier" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="PropertyTermPossessiveNoun" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="PropertyTermPrimaryNoun" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="PropertyTerm" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="RepresentationTerm" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="DataTypeQualifier" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="DataType" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="AssociatedObjectClassQualifier" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="AssociatedObjectClass" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="AlternativeBusinessTerms" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="Examples" minOccurs="0" maxOccurs="1"/>
</xsd:sequence>
</xsd:complexType>
top

Element: Context

Name Context
Type ccts:ContextType
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:Context>
<IndustryClassification> ... </IndustryClassification> [0..*]
<Geopolitical> ... </Geopolitical> [0..*]
<BusinessProcess> ... </BusinessProcess> [0..*]
<OfficialConstraint> ... </OfficialConstraint> [0..*]
<ProductClassification> ... </ProductClassification> [0..*]
<BusinessProcessRole> ... </BusinessProcessRole> [0..*]
<SupportingRole> ... </SupportingRole> [0..*]
<SystemCapability> ... </SystemCapability> [0..*]
</ccts:Context>
Schema Component Representation
<xsd:element name="Context" type="ccts:ContextType"/>
top

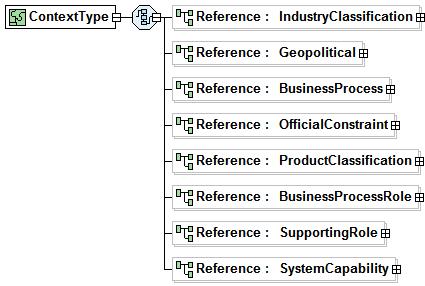

Complex Type: ContextType

Super-types: None
Sub-types: None
Name ContextType
Abstract no
Diagram
XML Instance Representation
<...>
<IndustryClassification> ... </IndustryClassification> [0..*]
<Geopolitical> ... </Geopolitical> [0..*]
<BusinessProcess> ... </BusinessProcess> [0..*]
<OfficialConstraint> ... </OfficialConstraint> [0..*]
<ProductClassification> ... </ProductClassification> [0..*]
<BusinessProcessRole> ... </BusinessProcessRole> [0..*]
<SupportingRole> ... </SupportingRole> [0..*]
<SystemCapability> ... </SystemCapability> [0..*]
</...>
Schema Component Representation
<xsd:complexType name="ContextType">
<xsd:sequence>
<xsd:element ref="IndustryClassification" minOccurs="0" maxOccurs="unbounded"/>
<xsd:element ref="Geopolitical" minOccurs="0" maxOccurs="unbounded"/>
<xsd:element ref="BusinessProcess" minOccurs="0" maxOccurs="unbounded"/>
<xsd:element ref="OfficialConstraint" minOccurs="0" maxOccurs="unbounded"/>
<xsd:element ref="ProductClassification" minOccurs="0" maxOccurs="unbounded"/>
<xsd:element ref="BusinessProcessRole" minOccurs="0" maxOccurs="unbounded"/>
<xsd:element ref="SupportingRole" minOccurs="0" maxOccurs="unbounded"/>
<xsd:element ref="SystemCapability" minOccurs="0" maxOccurs="unbounded"/>
</xsd:sequence>
</xsd:complexType>
top

Element: Contextualization

Name Contextualization
Type ccts:ContextualizationType
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:Contextualization>
<Context> ... </Context> [0..*]
</ccts:Contextualization>
Schema Component Representation
<xsd:element name="Contextualization" type="ccts:ContextualizationType"/>
top

Complex Type: ContextualizationType

Super-types: None
Sub-types: None
Name ContextualizationType
Abstract no
Diagram
XML Instance Representation
<...>
<Context> ... </Context> [0..*]
</...>
Schema Component Representation
<xsd:complexType name="ContextualizationType">
<xsd:sequence>
<xsd:element ref="Context" minOccurs="0" maxOccurs="unbounded"/>
</xsd:sequence>
</xsd:complexType>
top

Element: Instance

Name Instance
Type ccts:InstanceType
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:Instance>
<Name> ... </Name> [0..1]
<CodeListID> ... </CodeListID> [0..1]
<CodeListAgencyID> ... </CodeListAgencyID> [0..1]
<CodeListAgencyName> ... </CodeListAgencyName> [0..1]
<CodeListName> ... </CodeListName> [0..1]
<CodeListVersionID> ... </CodeListVersionID> [0..1]
<CodeListURI> ... </CodeListURI> [0..1]
<CodeListSchemeURI> ... </CodeListSchemeURI> [0..1]
<LanguageID> ... </LanguageID> [0..1]
</ccts:Instance>
Schema Component Representation
<xsd:element name="Instance" type="ccts:InstanceType"/>
top

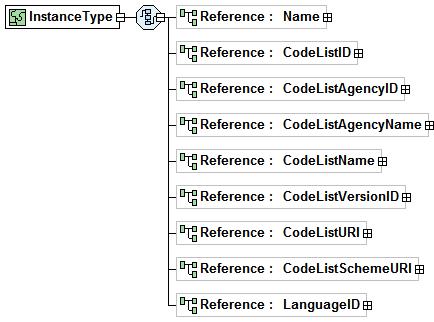

Complex Type: InstanceType

Super-types: None
Sub-types: None
Name InstanceType
Abstract no
Diagram
XML Instance Representation
<...>
<Name> ... </Name> [0..1]
<CodeListID> ... </CodeListID> [0..1]
<CodeListAgencyID> ... </CodeListAgencyID> [0..1]
<CodeListAgencyName> ... </CodeListAgencyName> [0..1]
<CodeListName> ... </CodeListName> [0..1]
<CodeListVersionID> ... </CodeListVersionID> [0..1]
<CodeListURI> ... </CodeListURI> [0..1]
<CodeListSchemeURI> ... </CodeListSchemeURI> [0..1]
<LanguageID> ... </LanguageID> [0..1]
</...>
Schema Component Representation
<xsd:complexType name="InstanceType">
<xsd:sequence>
<xsd:element ref="Name" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="CodeListID" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="CodeListAgencyID" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="CodeListAgencyName" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="CodeListName" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="CodeListVersionID" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="CodeListURI" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="CodeListSchemeURI" minOccurs="0" maxOccurs="1"/>
<xsd:element ref="LanguageID" minOccurs="0" maxOccurs="1"/>
</xsd:sequence>
</xsd:complexType>
top

Element: DictionaryEntryName

Name DictionaryEntryName
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:DictionaryEntryName> xsd:normalizedString </ccts:DictionaryEntryName>
Schema Component Representation
<xsd:element name="DictionaryEntryName" type="xsd:normalizedString"/>
top

Element: Version

Name Version
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:Version> xsd:normalizedString </ccts:Version>
Schema Component Representation
<xsd:element name="Version" type="xsd:normalizedString"/>
top

Element: ObjectClassQualifier

Name ObjectClassQualifier
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:ObjectClassQualifier> xsd:normalizedString </ccts:ObjectClassQualifier>
Schema Component Representation
<xsd:element name="ObjectClassQualifier" type="xsd:normalizedString"/>
top

Element: ObjectClass

Name ObjectClass
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:ObjectClass> xsd:normalizedString </ccts:ObjectClass>
Schema Component Representation
<xsd:element name="ObjectClass" type="xsd:normalizedString"/>
top

Element: PropertyTermQualifier

Name PropertyTermQualifier
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:PropertyTermQualifier> xsd:normalizedString </ccts:PropertyTermQualifier>
Schema Component Representation
<xsd:element name="PropertyTermQualifier" type="xsd:normalizedString"/>
top

Element: PropertyTermPossessiveNoun

Name PropertyTermPossessiveNoun
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:PropertyTermPossessiveNoun> xsd:normalizedString </ccts:PropertyTermPossessiveNoun>
Schema Component Representation
<xsd:element name="PropertyTermPossessiveNoun" type="xsd:normalizedString"/>
top

Element: PropertyTermPrimaryNoun

Name PropertyTermPrimaryNoun
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:PropertyTermPrimaryNoun> xsd:normalizedString </ccts:PropertyTermPrimaryNoun>
Schema Component Representation
<xsd:element name="PropertyTermPrimaryNoun" type="xsd:normalizedString"/>
top

Element: PropertyTerm

Name PropertyTerm
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:PropertyTerm> xsd:normalizedString </ccts:PropertyTerm>
Schema Component Representation
<xsd:element name="PropertyTerm" type="xsd:normalizedString"/>
top

Element: RepresentationTerm

Name RepresentationTerm
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:RepresentationTerm> xsd:normalizedString </ccts:RepresentationTerm>
Schema Component Representation
<xsd:element name="RepresentationTerm" type="xsd:normalizedString"/>
top

Element: DataTypeQualifier

Name DataTypeQualifier
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:DataTypeQualifier> xsd:normalizedString </ccts:DataTypeQualifier>
Schema Component Representation
<xsd:element name="DataTypeQualifier" type="xsd:normalizedString"/>
top

Element: DataType

Name DataType
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:DataType> xsd:normalizedString </ccts:DataType>
Schema Component Representation
<xsd:element name="DataType" type="xsd:normalizedString"/>
top

Element: AssociatedObjectClassQualifier

Name AssociatedObjectClassQualifier
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:AssociatedObjectClassQualifier> xsd:normalizedString </ccts:AssociatedObjectClassQualifier>
Schema Component Representation
<xsd:element name="AssociatedObjectClassQualifier" type="xsd:normalizedString"/>
top

Element: AssociatedObjectClass

Name AssociatedObjectClass
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:AssociatedObjectClass> xsd:normalizedString </ccts:AssociatedObjectClass>
Schema Component Representation
<xsd:element name="AssociatedObjectClass" type="xsd:normalizedString"/>
top

Element: AlternativeBusinessTerms

Name AlternativeBusinessTerms
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:AlternativeBusinessTerms> xsd:normalizedString </ccts:AlternativeBusinessTerms>
Schema Component Representation
<xsd:element name="AlternativeBusinessTerms" type="xsd:normalizedString"/>
top

Element: ComponentType

Name ComponentType
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:ComponentType> xsd:normalizedString </ccts:ComponentType>
Schema Component Representation
<xsd:element name="ComponentType" type="xsd:normalizedString"/>
top

Element: Cardinality

Name Cardinality
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:Cardinality> xsd:normalizedString </ccts:Cardinality>
Schema Component Representation
<xsd:element name="Cardinality" type="xsd:normalizedString"/>
top

Element: Definition

Name Definition
Type xsd:string
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:Definition> xsd:string </ccts:Definition>
Schema Component Representation
<xsd:element name="Definition" type="xsd:string"/>
top

Element: Examples

Name Examples
Type xsd:string
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:Examples> xsd:string </ccts:Examples>
Schema Component Representation
<xsd:element name="Examples" type="xsd:string"/>
top

Element: Name

Name Name
Type xsd:string
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:Name> xsd:string </ccts:Name>
Schema Component Representation
<xsd:element name="Name" type="xsd:string"/>
top

Element: CodeListID

Name CodeListID
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:CodeListID> xsd:normalizedString </ccts:CodeListID>
Schema Component Representation
<xsd:element name="CodeListID" type="xsd:normalizedString"/>
top

Element: CodeListAgencyID

Name CodeListAgencyID
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:CodeListAgencyID> xsd:normalizedString </ccts:CodeListAgencyID>
Schema Component Representation
<xsd:element name="CodeListAgencyID" type="xsd:normalizedString"/>
top

Element: CodeListAgencyName

Name CodeListAgencyName
Type xsd:string
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:CodeListAgencyName> xsd:string </ccts:CodeListAgencyName>
Schema Component Representation
<xsd:element name="CodeListAgencyName" type="xsd:string"/>
top

Element: CodeListName

Name CodeListName
Type xsd:string
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:CodeListName> xsd:string </ccts:CodeListName>
Schema Component Representation
<xsd:element name="CodeListName" type="xsd:string"/>
top

Element: CodeListVersionID

Name CodeListVersionID
Type xsd:normalizedString
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:CodeListVersionID> xsd:normalizedString </ccts:CodeListVersionID>
Schema Component Representation
<xsd:element name="CodeListVersionID" type="xsd:normalizedString"/>
top

Element: CodeListURI

Name CodeListURI
Type xsd:anyURI
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:CodeListURI> xsd:anyURI </ccts:CodeListURI>
Schema Component Representation
<xsd:element name="CodeListURI" type="xsd:anyURI"/>
top

Element: CodeListSchemeURI

Name CodeListSchemeURI
Type xsd:anyURI
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:CodeListSchemeURI> xsd:anyURI </ccts:CodeListSchemeURI>
Schema Component Representation
<xsd:element name="CodeListSchemeURI" type="xsd:anyURI"/>
top

Element: LanguageID

Name LanguageID
Type xsd:language
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:LanguageID> xsd:language </ccts:LanguageID>
Schema Component Representation
<xsd:element name="LanguageID" type="xsd:language"/>
top

Element: IndustryClassification

Name IndustryClassification
Type xsd:string
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:IndustryClassification> xsd:string </ccts:IndustryClassification>
Schema Component Representation
<xsd:element name="IndustryClassification" type="xsd:string"/>
top

Element: Geopolitical

Name Geopolitical
Type xsd:string
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:Geopolitical> xsd:string </ccts:Geopolitical>
Schema Component Representation
<xsd:element name="Geopolitical" type="xsd:string"/>
top

Element: BusinessProcess

Name BusinessProcess
Type xsd:string
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:BusinessProcess> xsd:string </ccts:BusinessProcess>
Schema Component Representation
<xsd:element name="BusinessProcess" type="xsd:string"/>
top

Element: OfficialConstraint

Name OfficialConstraint
Type xsd:string
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:OfficialConstraint> xsd:string </ccts:OfficialConstraint>
Schema Component Representation
<xsd:element name="OfficialConstraint" type="xsd:string"/>
top

Element: ProductClassification

Name ProductClassification
Type xsd:string
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:ProductClassification> xsd:string </ccts:ProductClassification>
Schema Component Representation
<xsd:element name="ProductClassification" type="xsd:string"/>
top

Element: BusinessProcessRole

Name BusinessProcessRole
Type xsd:string
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:BusinessProcessRole> xsd:string </ccts:BusinessProcessRole>
Schema Component Representation
<xsd:element name="BusinessProcessRole" type="xsd:string"/>
top

Element: SupportingRole

Name SupportingRole
Type xsd:string
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:SupportingRole> xsd:string </ccts:SupportingRole>
Schema Component Representation
<xsd:element name="SupportingRole" type="xsd:string"/>
top

Element: SystemCapability

Name SystemCapability
Type xsd:string
Nillable no
Abstract no
Diagram
XML Instance Representation
<ccts:SystemCapability> xsd:string </ccts:SystemCapability>
Schema Component Representation
<xsd:element name="SystemCapability" type="xsd:string"/>
top

Legend

Complex Type:

Schema Component Type

AusAddress

Schema Component Name
Super-types: Address < AusAddress (by extension)
Sub-types:
  • QLDAddress (by restriction)
If this schema component is a type definition, its type hierarchy is shown in a gray-bordered box.
Name AusAddress
Abstract no
The table above displays the properties of this schema component.
XML Instance Representation
<... country="Australia" >
<unitNo> string </unitNo> [0..1]
<houseNo> string </houseNo> [1]
<street> string </street> [1]
Start Choice [1]
<city> string </city> [1]
<town> string </town> [1]
End Choice
<state> AusStates </state> [1]
<postcode> string <<pattern = [1-9][0-9]{3}>> </postcode> [1] ?
</...>

The XML Instance Representation table above shows the schema component's content as an XML instance.

Schema Component Representation
<complexType name="AusAddress">
<complexContent>
<extension base="Address">
<sequence>
<element name="state" type="AusStates"/>
<element name="postcode">
<simpleType>
<restriction base="string">
<pattern value="[1-9][0-9]{3}"/>
</restriction>
</simpleType>
</element>
</sequence>
<attribute name="country" type="string" fixed="Australia"/>
</extension>
</complexContent>
</complexType>
The Schema Component Representation table above displays the underlying XML representation of the schema component. (Annotations are not shown.)
top

Glossary

Abstract (Applies to complex type definitions and element declarations). An abstract element or complex type cannot used to validate an element instance. If there is a reference to an abstract element, only element declarations that can substitute the abstract element can be used to validate the instance. For references to abstract type definitions, only derived types can be used.

All Model Group Child elements can be provided in any order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-all.

Choice Model Group Only one from the list of child elements and model groups can be provided in instances. See: http://www.w3.org/TR/xmlschema-1/#element-choice.

Collapse Whitespace Policy Replace tab, line feed, and carriage return characters with space character (Unicode character 32). Then, collapse contiguous sequences of space characters into single space character, and remove leading and trailing space characters.

Disallowed Substitutions (Applies to element declarations). If substitution is specified, then substitution group members cannot be used in place of the given element declaration to validate element instances. If derivation methods, e.g. extension, restriction, are specified, then the given element declaration will not validate element instances that have types derived from the element declaration's type using the specified derivation methods. Normally, element instances can override their declaration's type by specifying an xsi:type attribute.

Key Constraint Like Uniqueness Constraint, but additionally requires that the specified value(s) must be provided. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

Key Reference Constraint Ensures that the specified value(s) must match value(s) from a Key Constraint or Uniqueness Constraint. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

Model Group Groups together element content, specifying the order in which the element content can occur and the number of times the group of element content may be repeated. See: http://www.w3.org/TR/xmlschema-1/#Model_Groups.

Nillable (Applies to element declarations). If an element declaration is nillable, instances can use the xsi:nil attribute. The xsi:nil attribute is the boolean attribute, nil, from the http://www.w3.org/2001/XMLSchema-instance namespace. If an element instance has an xsi:nil attribute set to true, it can be left empty, even though its element declaration may have required content.

Notation A notation is used to identify the format of a piece of data. Values of elements and attributes that are of type, NOTATION, must come from the names of declared notations. See: http://www.w3.org/TR/xmlschema-1/#cNotation_Declarations.

Preserve Whitespace Policy Preserve whitespaces exactly as they appear in instances.

Prohibited Derivations (Applies to type definitions). Derivation methods that cannot be used to create sub-types from a given type definition.

Prohibited Substitutions (Applies to complex type definitions). Prevents sub-types that have been derived using the specified derivation methods from validating element instances in place of the given type definition.

Replace Whitespace Policy Replace tab, line feed, and carriage return characters with space character (Unicode character 32).

Sequence Model Group Child elements and model groups must be provided in the specified order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-sequence.

Substitution Group Elements that are members of a substitution group can be used wherever the head element of the substitution group is referenced.

Substitution Group Exclusions (Applies to element declarations). Prohibits element declarations from nominating themselves as being able to substitute a given element declaration, if they have types that are derived from the original element's type using the specified derivation methods.

Target Namespace The target namespace identifies the namespace that components in this schema belongs to. If no target namespace is provided, then the schema components do not belong to any namespace.

Uniqueness Constraint Ensures uniqueness of an element/attribute value, or a combination of values, within a specified scope. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.

top
